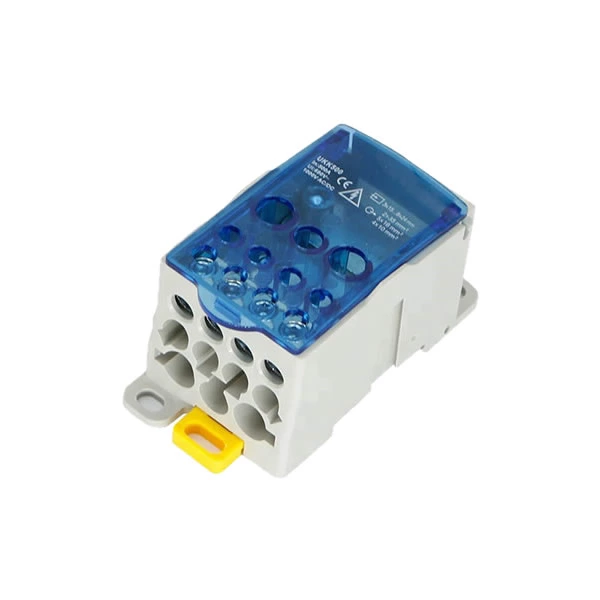

UKK 500A distribution terminal block UKK series
- Model:
- UKK-500A
- Type:
- Screw
- Rated Current:
- 500A
- Rated Voltage:
- 500V
- Conductor Size:
- 5 - 10 AWG
- Color:
- Blue and gray
UKK 500A distribution terminal block UKK series:
Features
These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.
Compact design
- Simple and Safety Operating
- Install on 35mm wide DIN rail or chassis mounting with screws.
- With Dust-proof and insulation cover

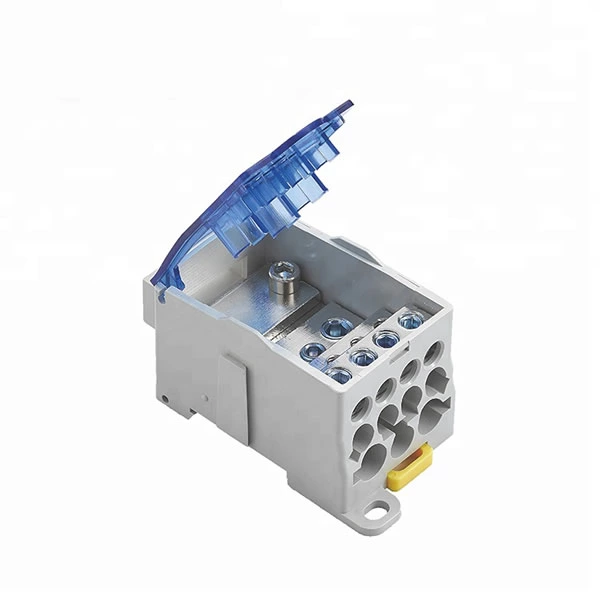

- hinged design with safety removable cover.
Specifications
| Item name | spec. | Rated Current (A) | Rated Voltage (V) | Input Cable size (mm2)*pcs | Output Cable size (mm2)*pcs | Install Way din rail | Size (mm) |
| Terminal Box | UKK-80A | 80 | 500 | 16*2 | (2.5-16)*1 (1.5-10)*4 | 1.0*7.5*35 | 65*31*47 |
| UKK-125A | 125 | 500 | 35*1 16*1 | (2.5-16)*6 | 1.0*7.5*35 | 75*31*47 | |
| UKK-160A | 160 | 500 | 70*1 16*1 | (2.5-16)*6 | 1.0*7.5*35 | 75*31*48 | |
| UKK-250A | 250 | 500 | 120*1 | (6-35)*2 (2.5-25)*4 (2.5-16)*5 | 1.0*7.5*35 | 96*50*51 | |
| UKK-400A | 400 | 500 | 175*1 | (6-35)*2 (2.5-25)*4 (2.5-16)*5 | 1.0*7.5*35 | 95*50*51 | |

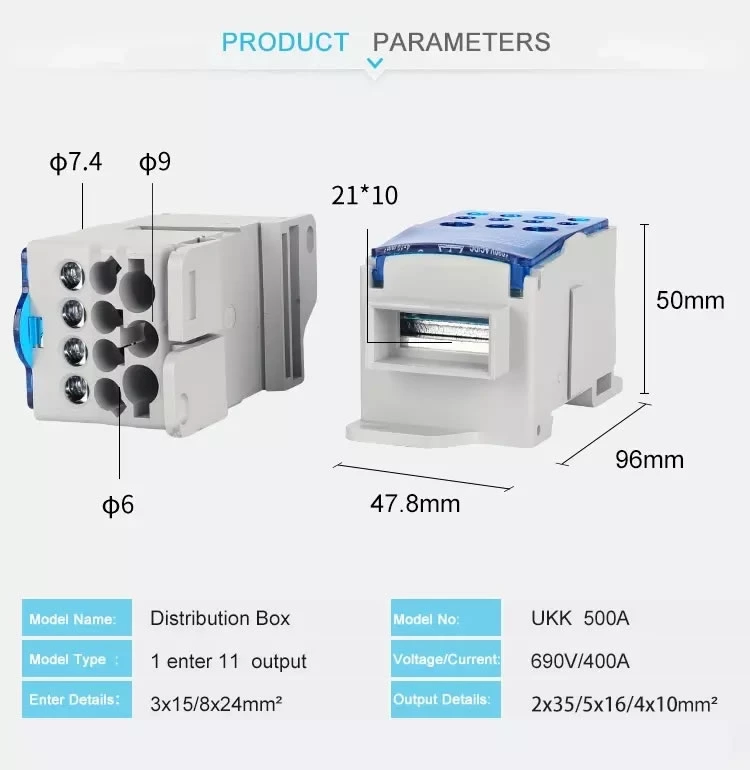

| UKK-500A | 500 | 500 | 8*25 | (6-35)*2 (2.5-25)*4 (2.5-16)*5 | 1.0*7.5*35 | 96*50*51 |
