NC-100H Mini Circuit Breaker
Mini Circuit Breaker
NC-100H
NC-100H Mini Circuit Breaker

NC-100H Mini Circuit Breaker

NC-100H high breaking capacity circuit breaker is used for AC 50Hz or 60Hz, single pole 240V,2,3,4 poles 415V for protecting the circuit that overload and short circuit may take place. It can be used in lighting and electric motor distribution system. Meantime, it is applicable to an unfrequent switch over the electric apparatus and lighting circuit under normal condition. Breaking capacity is up to standard of IEC947-710KA.

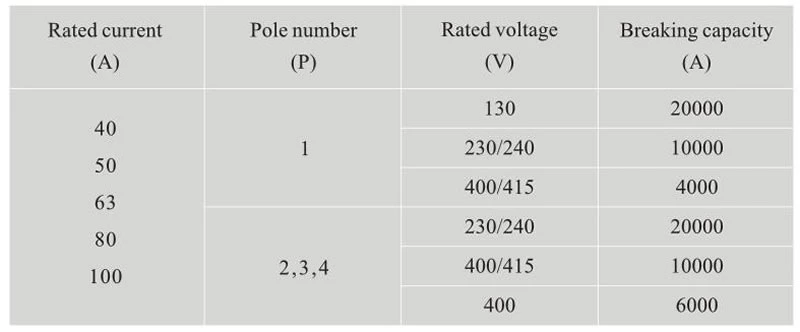

Specification

NC-100H Mini Circuit Breaker-4_Specification

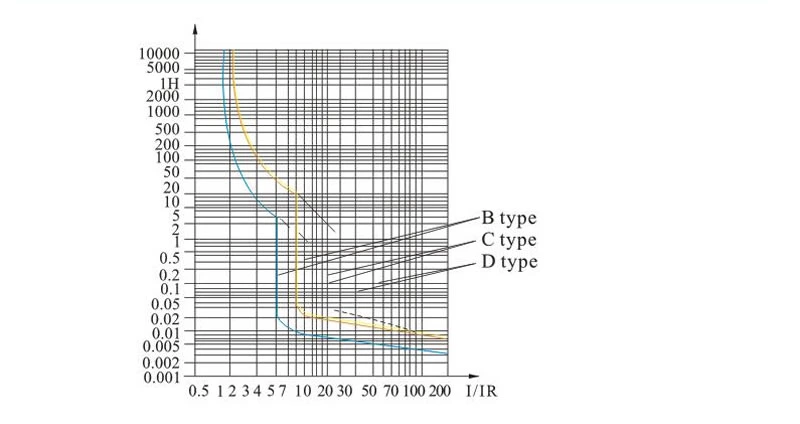

Characteristic Curve

NC-100H Mini Circuit Breaker-5_Characteristic Curve

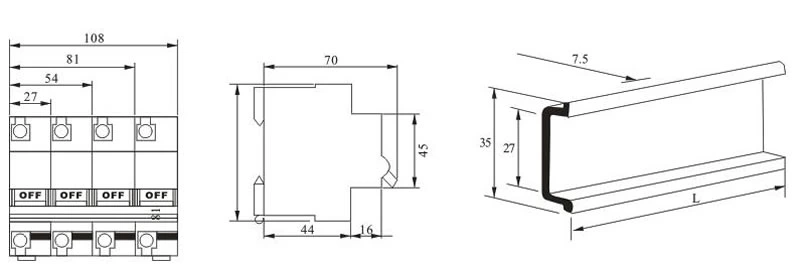

Dimensions

NC-100H Mini Circuit Breaker-5_Dimensions
