Metal Distribution Box

Metal Junction Box Control Desks Electrical Metal Switch Box

Type
DISTRIBUTION BOX
Material
AISI 304 or AISI 316 Stainless steel
Color
Ral7035 or Ral7032
External Size
From 200x200x150mm to 1200x1000x300mm
Certificate
CE,IEC,ROHS,TUV,SGS
Lock
Available On Request
Thickness
1.2mm,1.5mm,2.0mm
Paint Finish
Epoxy polyester coating
OEM
Offered
Protection Level
IP66
Contact Now
Metal Junction Box Control Desks Electrical Metal Switch Box
Metal Junction Box Metal Switch Box Metal Junction Box Control Desks Electrical Metal Switch Box

Material :

  • Enclosure body & door : AISI 304 or AISI 316 Stainless steel
  • Mounting plate : Galvanized steel
  • Hinge and lock : Zinc alloy

Thickness:

Body:

  • 1.2mm thickness for height from 250mm to 800mm
  • 1.5mm thickness for height from 1000mm to 1200mm

Door:

  • 1.2mm thickness for height from 250mm to 600mm
  • 1.5mm thickness for height from 700mm to 1200mm

Mounting plate:

  • 2.0mm thickness for all dimension.

Surface finish:

  • Enclosure and door: Polished or Mirror
  • Mounting plate:Galvanized

Protection:

  • Protection degree:IP66
  • Impact resistance:IK10

Supply include:

  • Enclosure of all-round solid construction
  • Gland plate with sealing gasket,
  • Door with lock and key
  • Fixing accessories for gland plate

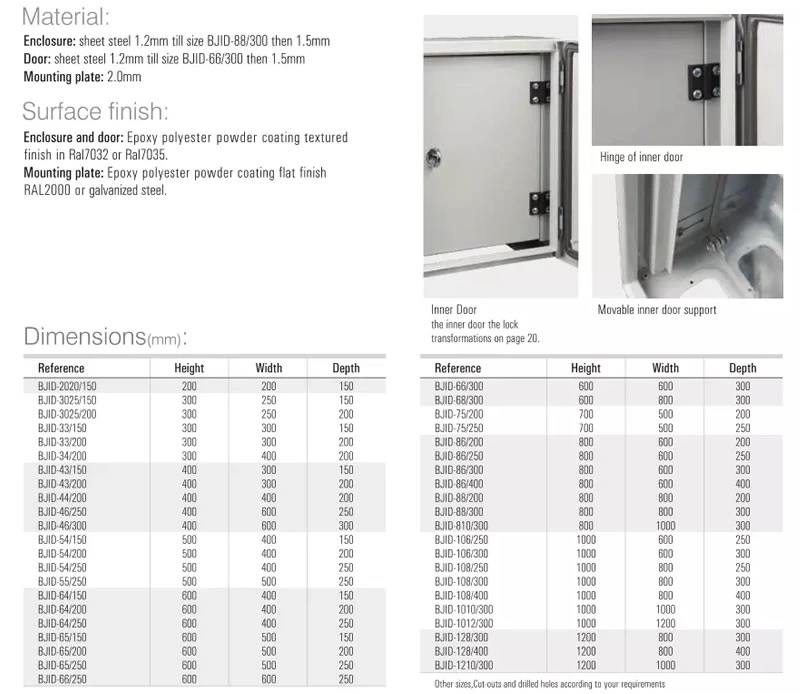

dimension
