Metal Consumer Unit British Standard Domestic Householding Circuit Protection System /MCB/RCD/RCBO/SPD/AFDD Assemble
- Type:
- DISTRIBUTION BOX
- External Size:
- Different sizes
- Protection Level:
- IP55
| Ways | Products Part No | Description |
| 4 | PXMCU4M100 | Main switch 100A + 2 Outgoing ways |
| PXMCU4R63 | RCD 63A + 2 Outgoing ways | |
| 8 | PXMCU8M100 | Main switch 100A + 6 Outgoing ways |
| PXMCU8R63 | RCD 63A + 6 Outgoing ways | |
| 10 | PXMCU10M100 | Main switch 100A + 8 Outgoing ways |
| PXMCU10R80 | RCD 80A + 8 Outgoing ways | |
| PXMCU10SL10063 | MS 100A+RCD 63A Split Load + 6 Outgoing ways | |
| 14 | PXMCU14M100 | Main switch 100A + 12 Outgoing ways |
| PXMCU14R80 | RCD 80A + 12 Outgoing ways | |
| PXMCU14SL10063 | MS 100A+RCD 63A Split Load + 10 Outgoing ways | |
| PXMCU14DR10063 | MS100A+2xRCD63A+8 Outgoing ways | |
| 18 | PXMCU18M100 | Main switch 100A + 16 Outgoing ways |
| PXMCU18R80 | RCD 80A + 16 Outgoing ways | |
| PXMCU18SL10080 | MS 100A+RCD 80A Split Load + 14 Outgoing ways | |
| PXMCU18DR10063 | MS100A+2xRCD63A+12 Outgoing ways | |
| PXMCU18RRM10063 | MS100A+2xRCBO outgoing+2xRCD 63A +10 outgoing | |
| 21 | PXMCU21M100 | Main switch 100A + 19 Outgoing ways |
| PXMCU21R80 | RCD 80A + 19 Outgoing ways | |
| PXMCU21SL10080 | MS 100A+RCD 80A Split Load + 17 Outgoing ways | |
| PXMCU21DR10063 | MS100A+2xRCD63A+15Outgoing ways | |
| PXMCU21RRM10063 | MS100A+2xRCBO outgoing+2xRCD 63A +12 outgoing | |
| 24 | PXMCU24M125 | Main switch 125A + 22 Outgoing ways |
| PXMCU24R80 | RCD 80A + 22 Outgoing ways | |
| PXMCU24SL12580 | MS 125A+RCD 80A Split Load + 20 Outgoing ways | |
| PXMCU24DR12580 | MS125A+2xRCD80A+18 Outgoing ways |
TECHNICAL DATA
ALL INDEPENDENT CIRCUITS / Main Switch 100% Miniature RCBOs.

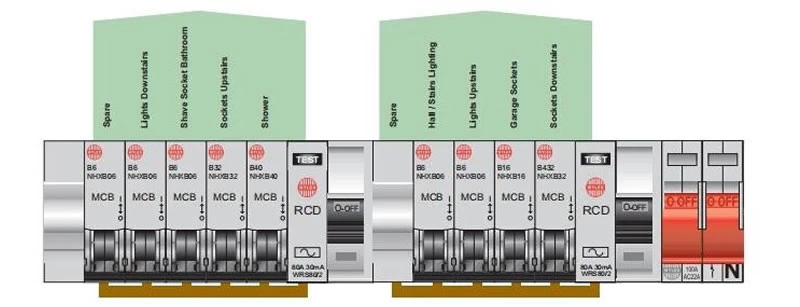

HALF INDEPENDENT CIRCUITS / Split Load

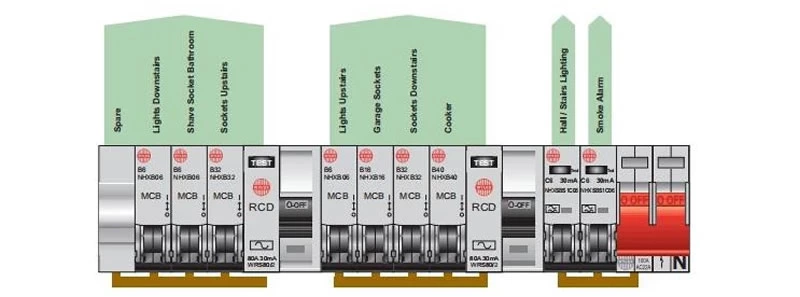

SOME INDEPENDENT CIRCUITS / High Integrity
NON INDEPENDENT CIRCUIT / Dual RCD
