Metal Distribution Box

Ip65 High Quality Electrical Metal Control Box

Type
DISTRIBUTION BOX
Material
steel
Color
RAL7035
Surface Treatment
powder coating
External Size
300*250*150
Lock
MS705
Thickness
1.2/1.2/1.5
Protection Level
IP65
Contact Now
Ip65 High Quality Electrical Metal Control Box

Standard configuration:

  • Enclosure and door
  • Mounting plate
  • Bar Lock
  • din rail
  • Polyurethane door seal
  • Cable gland plate and gasket

Degree of protection: IP55 to E N60529

External mechanical impact resistance: I K10

Surface treatment:Textrured epoxy polyester powder coating

Material and color:

  • Body and front door: Cold roll steel to paint in RAL7035
  • Mounting plate : galvanized steel.

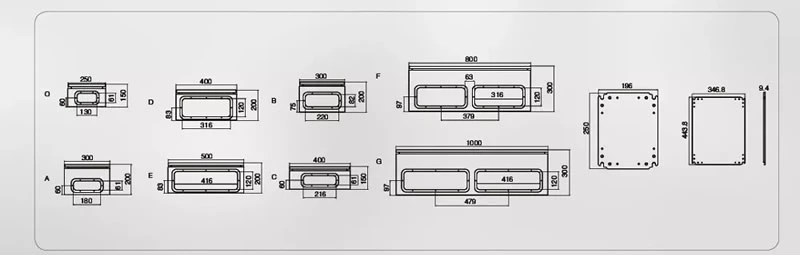

drawing
