Distribution Block

Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box

Model
UKK 400A
Type
Terminal Block
Material
Copper
Application
Electrical Connections
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
Square
Interface Type
AC/DC
Certification
Ce, CQC, RoHS
Input Size
1 X 185mm²
Output Size
2 X 35mm² 5 X 16mm² 4 X 10mm²
Dimension
L96/H50/W47.8 mm
Connection Method
Screw Connection
Specification
690V/400A
Contact Now
Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box
Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box

Ukk 400A 35 mm DIN Rail Wiring Distribution Block Junction Box

These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.

  1. Compact design.
  2. Simple and Safety Operating
  3. Install on 35mm wide DIN rail or chassis mounting with screws.
  4. With Dust-proof and insulation cover
  5. hinged design with safety removable cover.

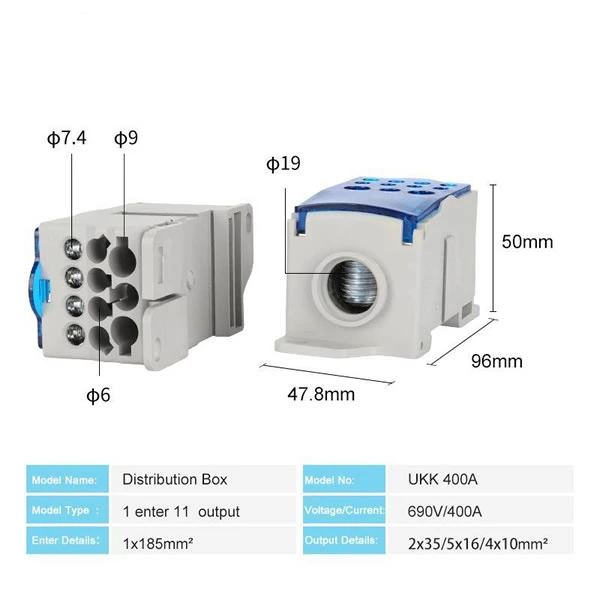

Technical Parameters

Model No. UKK 400A
Color Blue and Gray
Length/Height/Wide (mm) 47.8/50/96
Connection method Screw connection
Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 690V400A
Entry Specification 1X185mm²
Output Specification 2X35/5X16/4X10 mm²
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
Certification CE/RoHS/CQC/ISO 9001
