Distribution Block

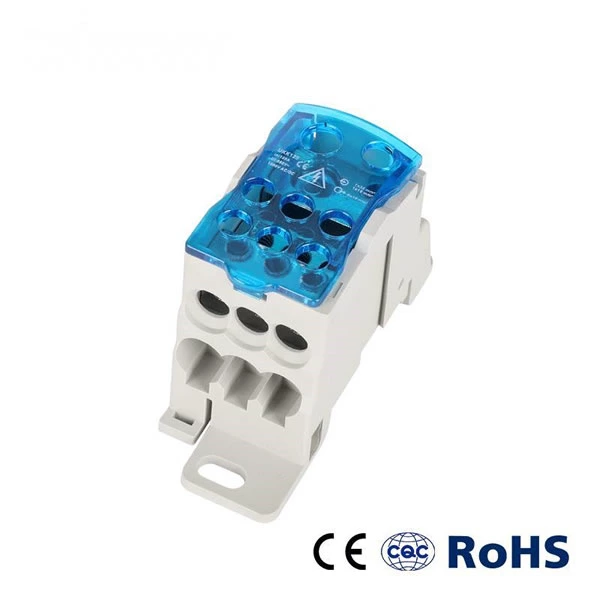

Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply

Model
UKK 125A
Type
Terminal Block
Material
Copper
Application
Electrical Connections
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
Square
Interface Type
AC/DC
Certification
Ce, CQC, RoHS
Input Size
1 X 16mm²
Output Size
Output: 6 X 16mm²
Dimension
L74/H47/W29.4 mm
Connection Method
Screw Connection
Specification
690V/125A
Contact Now
Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply
Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply

Ukk 125A DIN Rail Screw Distribution Block Terminal Power Supply

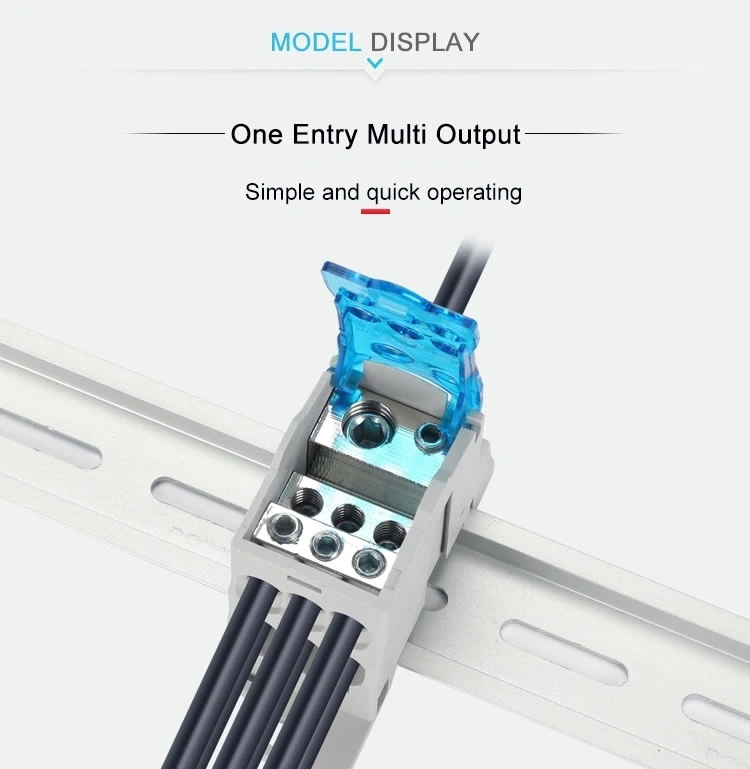

These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.

  1. Compact design.
  2. Simple and Safety Operating

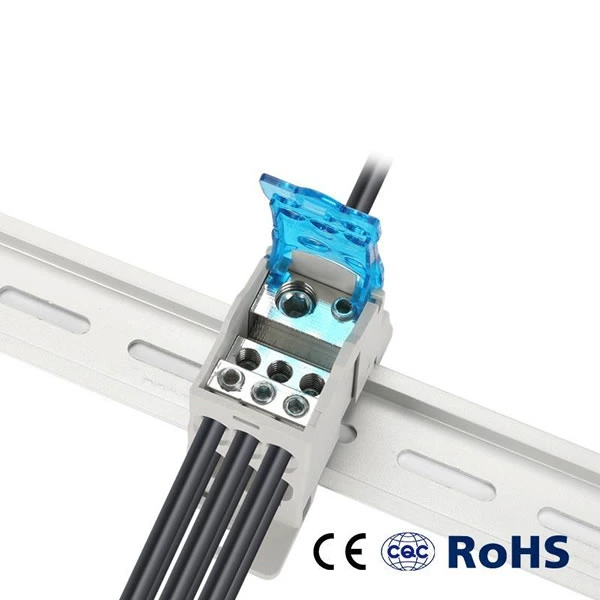

  3. Install on 35mm wide DIN rail or chassis mounting with screws.
  4. With Dust-proof and insulation cover

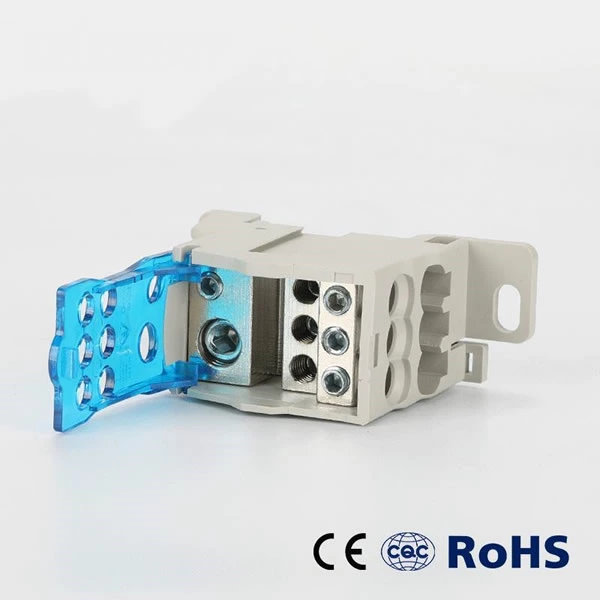

  5. hinged design with safety removable cover.

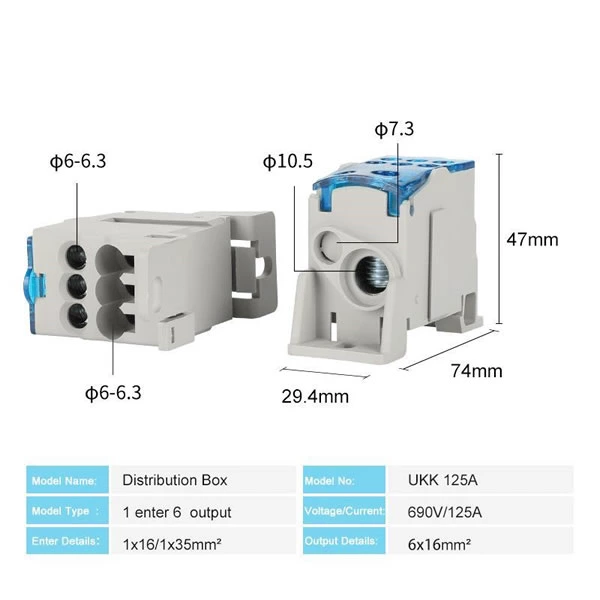

Technical Parameters

Model No. UKK 125A
Color Blue and Gray
Length/Height/Wide (mm) 29.4/47/74
Connection method Screw connection

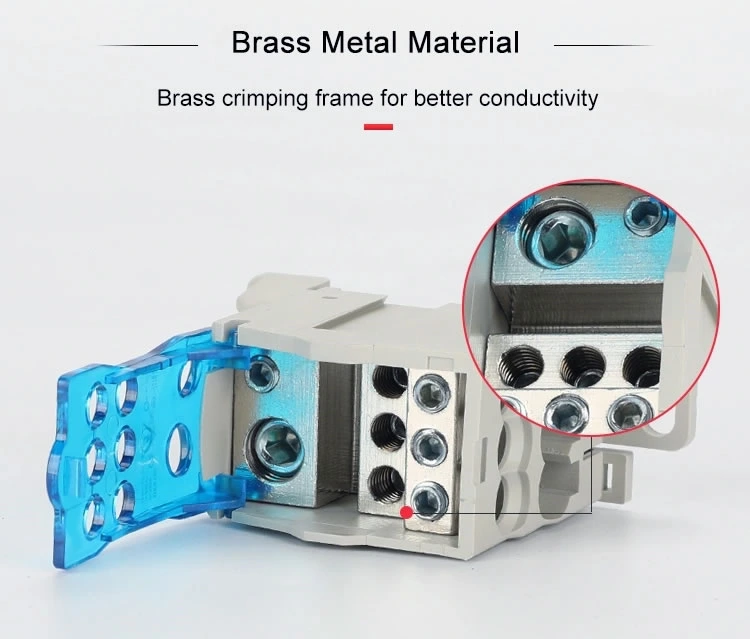

Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 690V/125A
Entry Specification 1X16 /1X35mm²
Output Specification 6X16 mm²
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
Certification CE/RoHS/CQC/ISO 9001
