Distribution Block

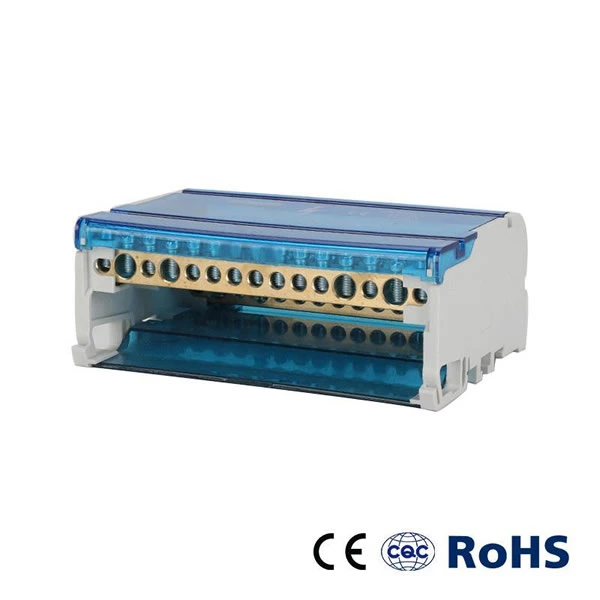

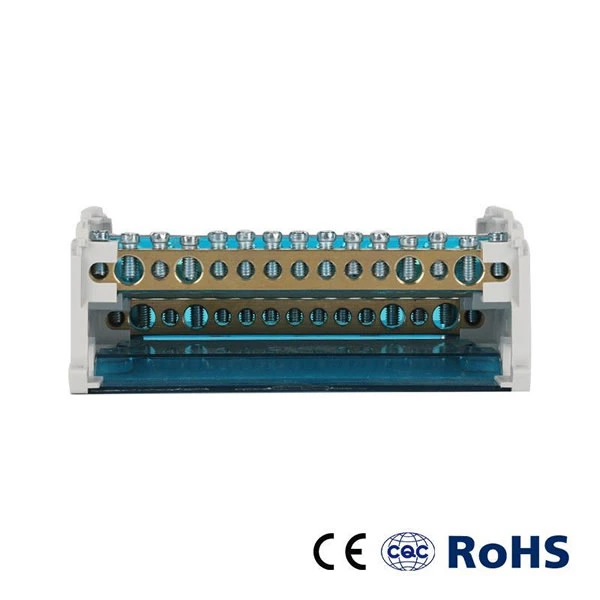

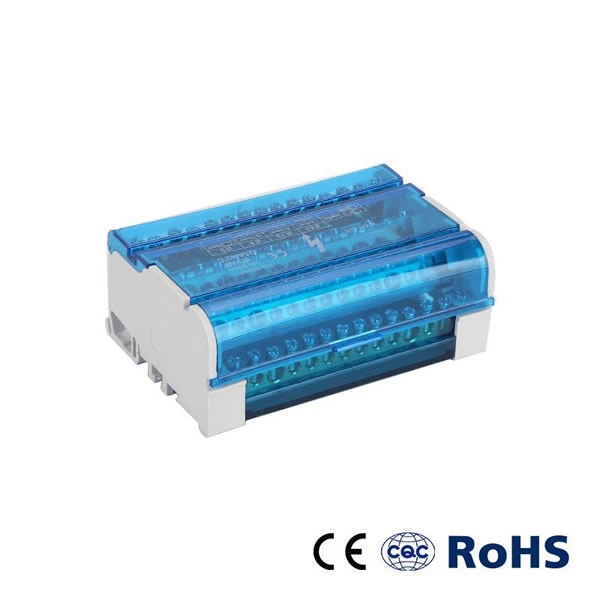

GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover

Model
GP 415
Type
Terminal Block
Material
Copper
Application
Electrical Connections
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
Square
Interface Type
AC/DC
Certification
Ce, CQC, RoHS
Dimension
L134/H50/W90 mm
Hole Quantity
4 X 15
Brass Bar
6.5 X 12mm
Cross Section
35mm²
Connection Method
Screw Connection
Contact Now
GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover
GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover

GP 415 Power Distribution Terminal Block Fiber with Dust-Proof Cover

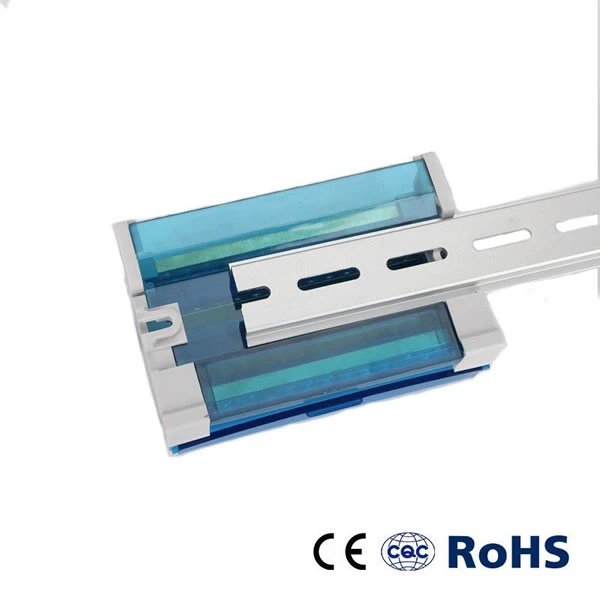

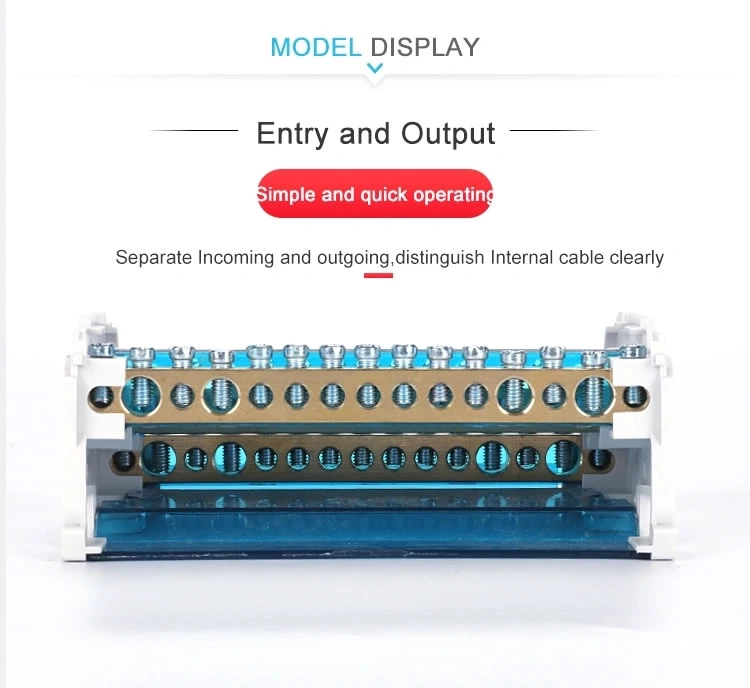

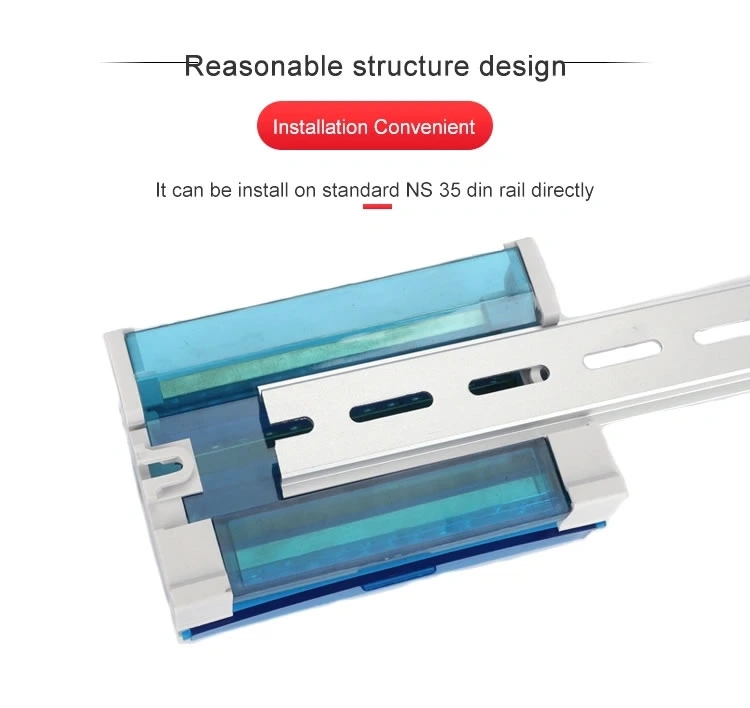

The GP screw-type distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. You can use the distributor block to establish an electromechanical connection between a wire with a large cross-section and one or more wires with small cross-sections. They can be used in installation and distribution board construction and also in controller construction for machinery. The GP blocks are mounted by snapping  on to NS 35 DIN rails.

They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.

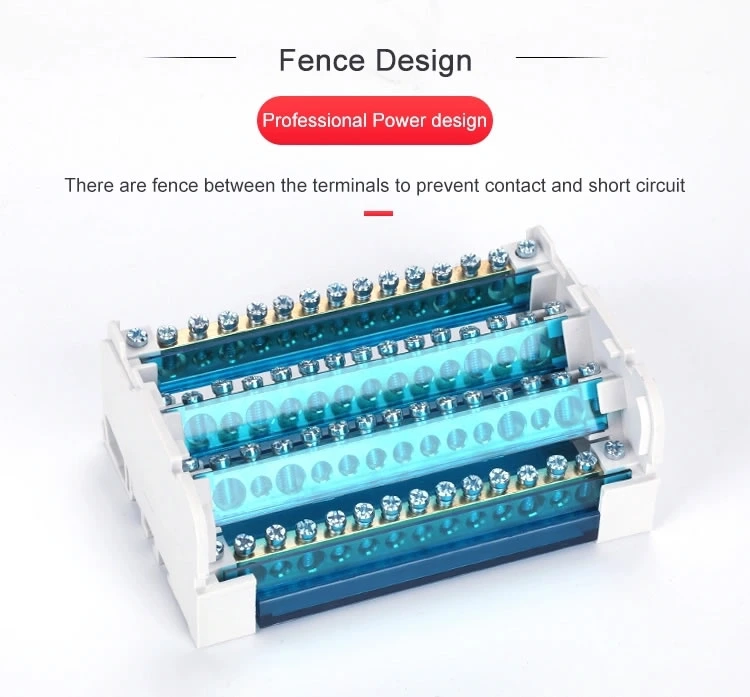

  1. Single or multiple pole configurations in the most compact footprint. Allows users to build smaller or higher density panels

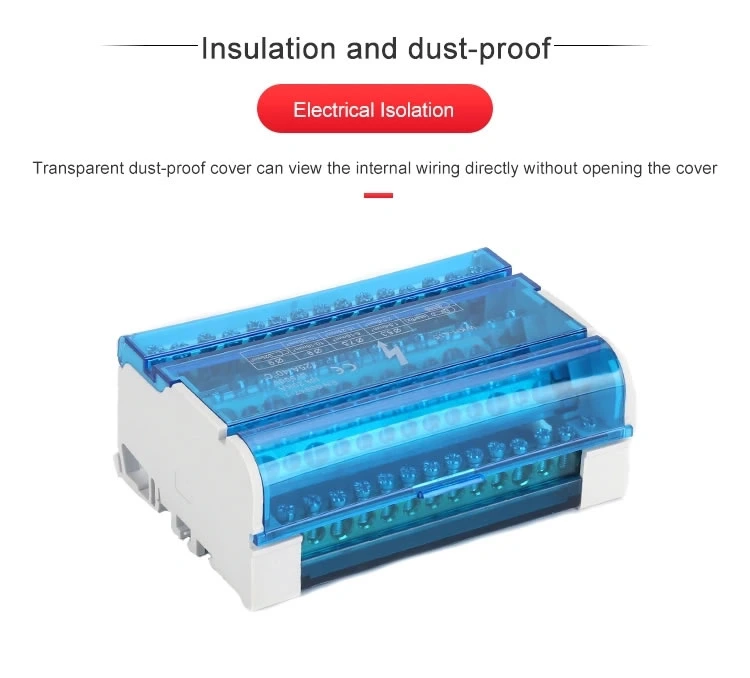

  2. Waterproof IP 20 with removable transparent cover
  3. Brass Conductor
  4. Reasonable Design save the installation space.

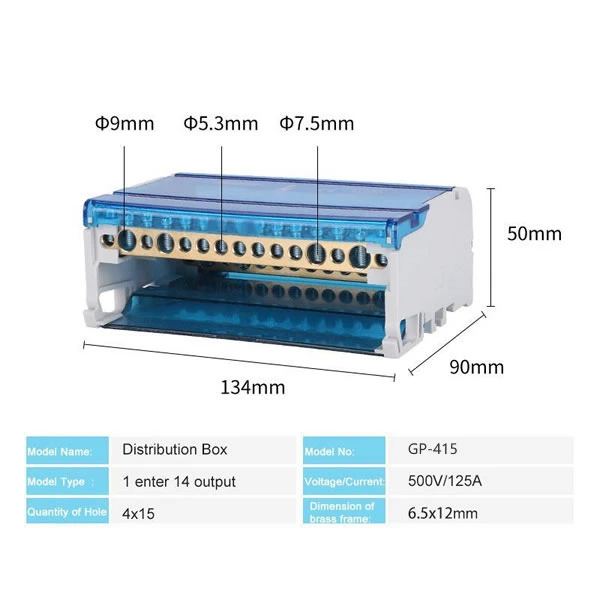

Technical Parameters

Model No. GP 415
Color Blue and Gray
Length/Height/Wide (mm) 134/50/90
Connection method Screw Cage
Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 500V/125A
Quantity of Hole 4X15
Dimension for Brass Conductor 6.5*12mm
Mounting Type 35mm  DIN Rail
Standard IEC 60947-7-1
Certification CE/RoHS/CQC/ISO 9001
