Distribution Block

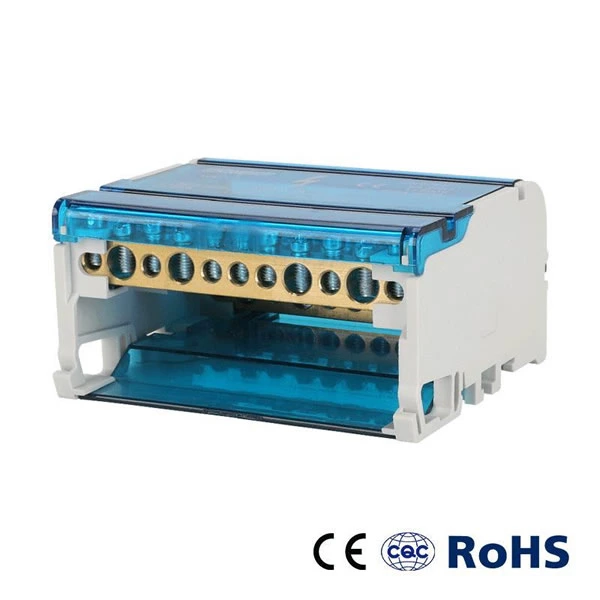

GP 411 Brass Busbar Power Distribution Terminal

Model
GP 411
Type
Terminal Block
Material
Copper
Application
Electrical Connections
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
Square
Interface Type
AC/DC
Certification
Ce, CQC, RoHS
Dimension
L100/H50/W90 mm
Hole Quantity
4 X 11
Brass Bar
6.5 X 12mm
Cross Section
35mm²
Connection Method
Screw Connection
Contact Now

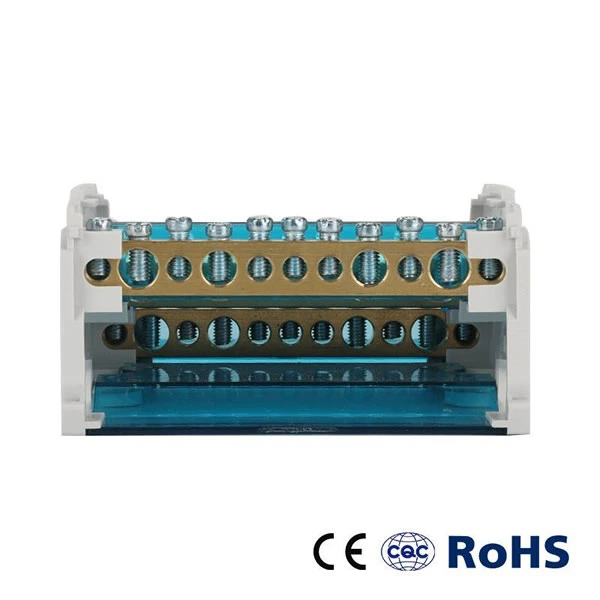

GP 411 Brass Busbar Power Distribution Terminal
GP 411 Brass Busbar Power Distribution Terminal GP 411 Brass Busbar Power Distribution Terminal GP 411 Brass Busbar Power Distribution Terminal GP 411 Brass Busbar Power Distribution Terminal GP 411 Brass Busbar Power Distribution Terminal

GP 411 Brass Busbar Power Distribution Terminal

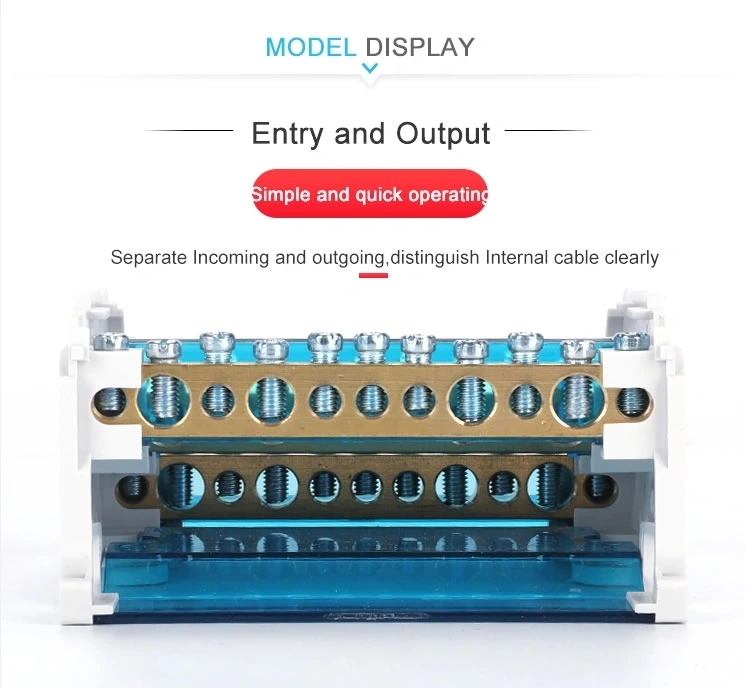

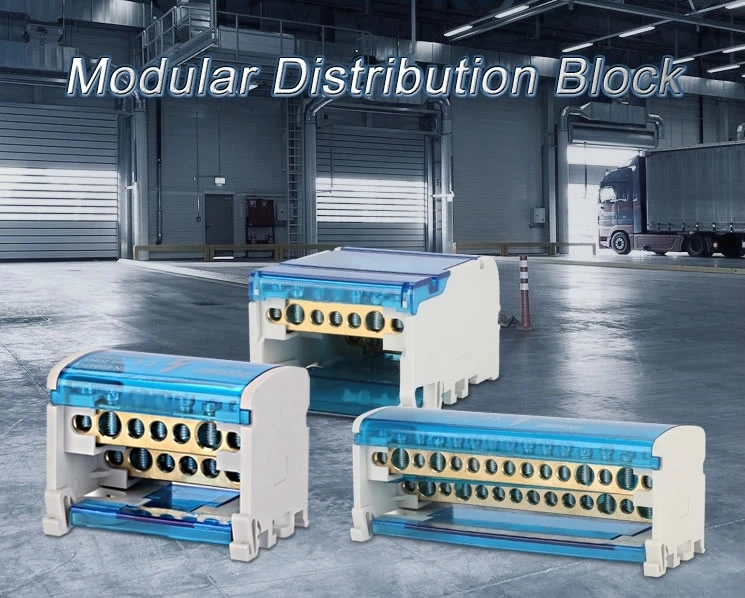

Modular distribution block distribute unipolar and multipolar power lines, or combine several inputs.

Mount it on Din rail or plate and save up to 50% rail space compared to conventional copper bars.
It can reduce the assembly time by 80% by avoiding to use fastening.

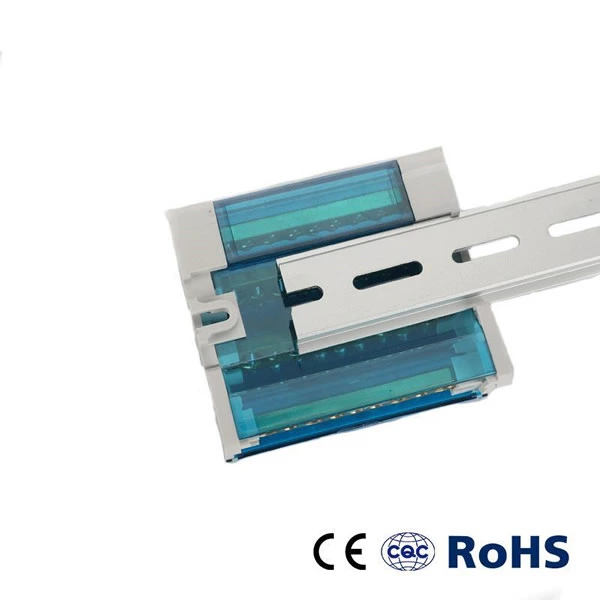

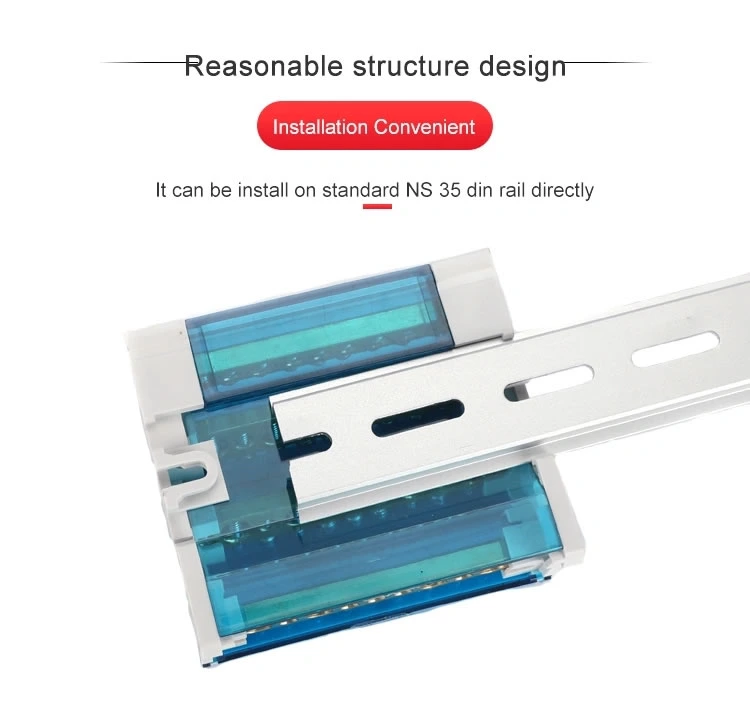

For installation, it can install DIN rail or chassis mounting with screws.

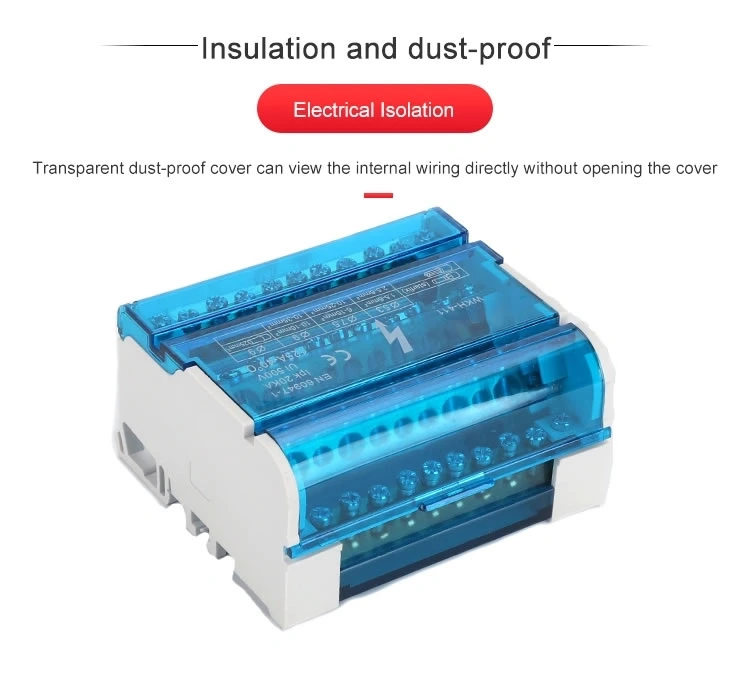

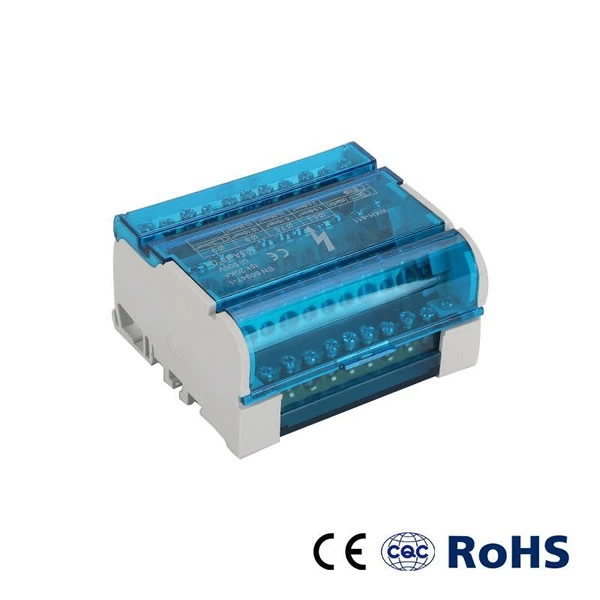

  1. Supplied with insulated back plate and transparent protective front cover

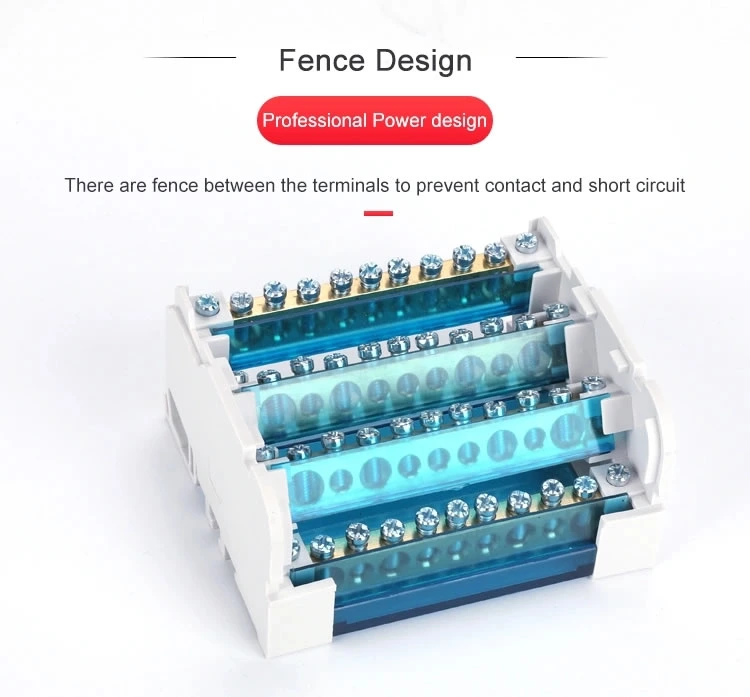

  2. Brass bus bar with good electrical conductivity
  3. Easy connect and save installation space
  4. Screw Connection

Technical Parameters

Model No. GP 411
Color Blue and Gray

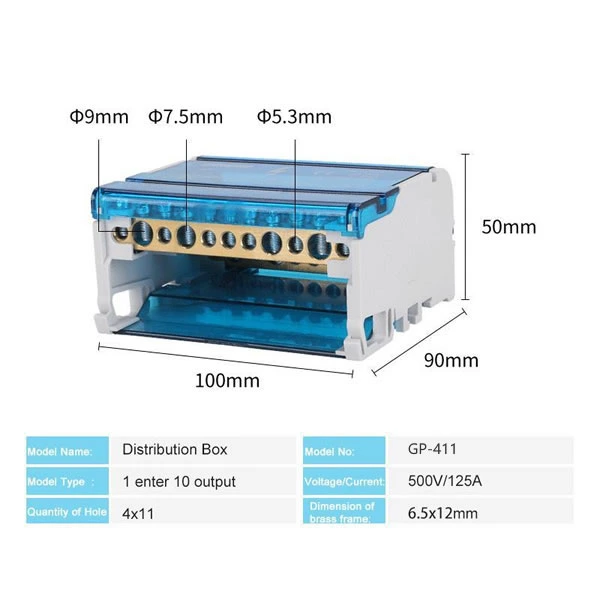

Length/Height/Wide (mm) 100/50/90
Connection method Screw clamp
Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 500V/125A
Quantity of Hole 4X11
Dimension for Brass Conductor 6.5*12mm
Mounting Type Rail Mountedl NS 35
Standard IEC 60947-7-1
Certification CE/RoHS/CQC/ISO 9001
