Distribution Block

GP 407 Electrical Power Supply Connector Block

Model:
GP 407
Type:
Terminal Block
Material:
Copper
Application:
Electrical Connections
Character:
Environmental Protection
Species:
Terminal
Production Process:
Injection Molding
Shape:
Square
Interface Type:
AC/DC
Certification:
Ce, CQC, RoHS
Dimension:
L67/H50/W90 mm
Hole Quantity:
4 X 7
Brass Bar:
6.5 X 12mm
Cross Section:
35mm²
Connection Method:
Screw Connection
Contact Now

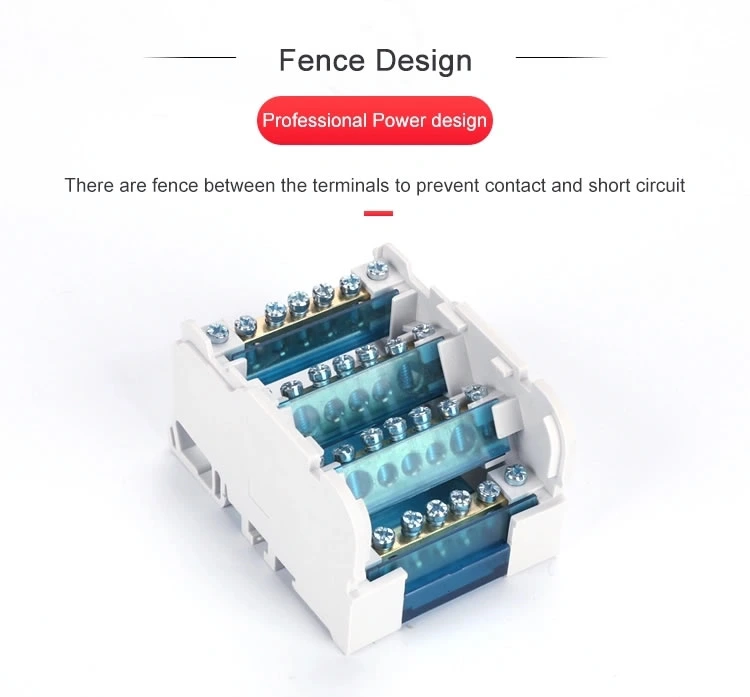

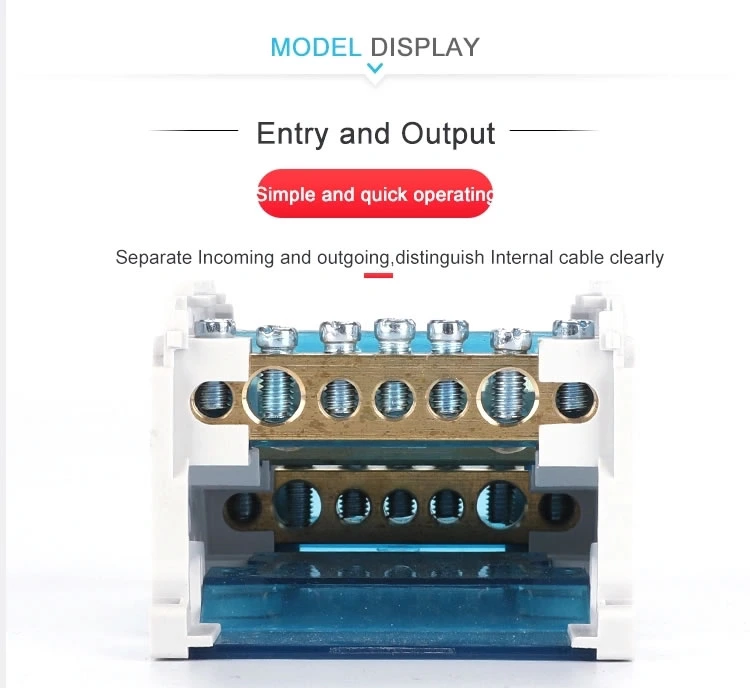

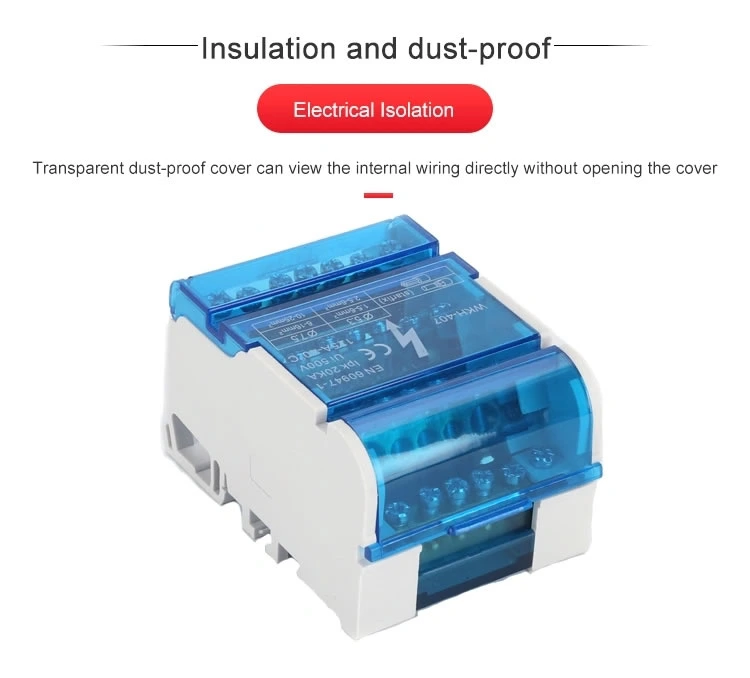

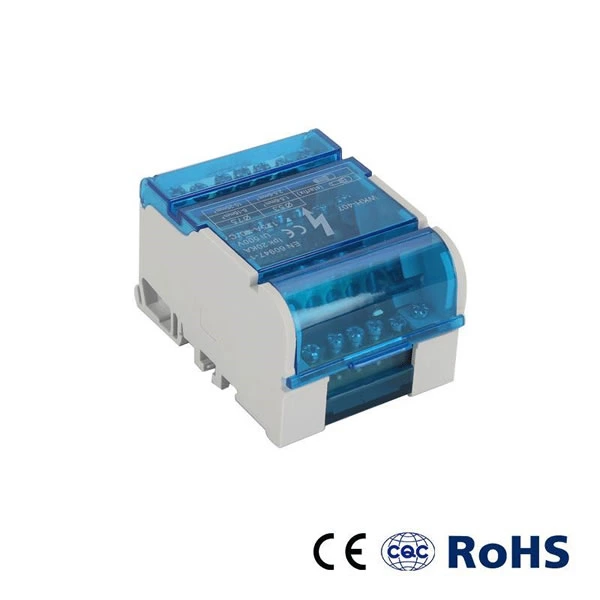

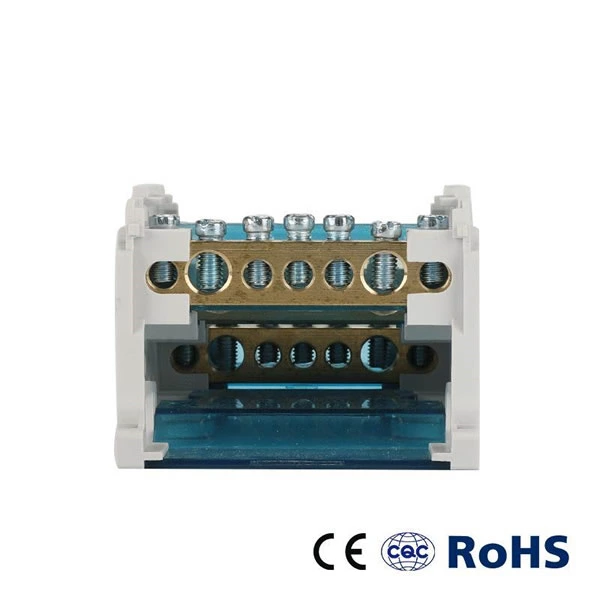

GP 407 Electrical Power Supply Connector Block

A Distribution block is an economical and convenient way of distributing an electrical circuit from a single input source, to several devices in the branch circuit. Thus reducing the total number of wires in your electrical panel and saving you time and money.

The exclusive compact and modular design of our distribution blocks allows easy installation combined with a great flexibility of use.

  1. Panel space saving: save up to 50 % rail space
  2. Increased productivity thanks to reduced wiring, inventories, hardware and assembly costs
  3. Convenient single pole or multipole splitter
  4. Compact design.

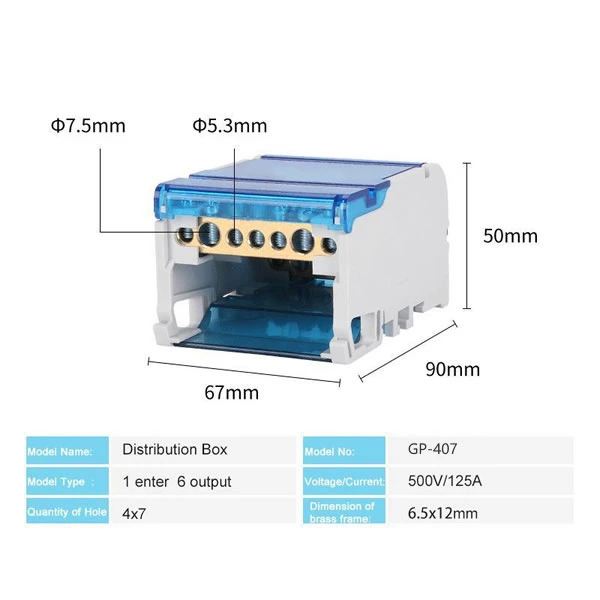

Technical Parameters

Model No. GP 407
Color Blue and Gray
Length/Height/Wide (mm) 67/50/90
Connection method Screw connection
Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 500V/125A
Quantity of Hole 4X7
Dimension for Brass Conductor 6.5*12mm

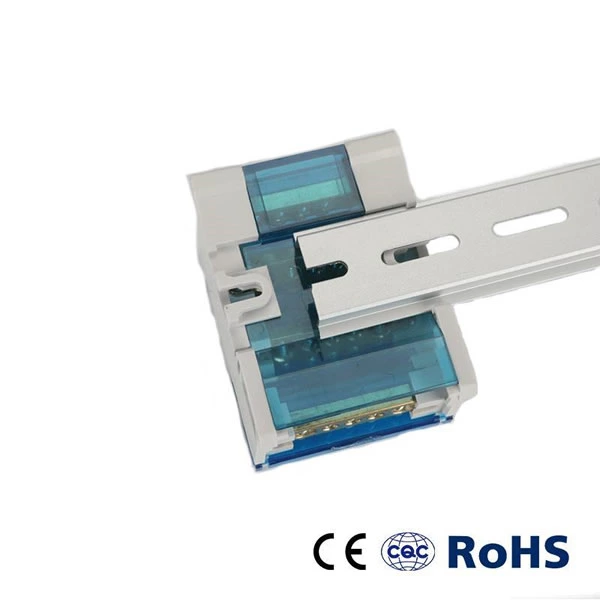

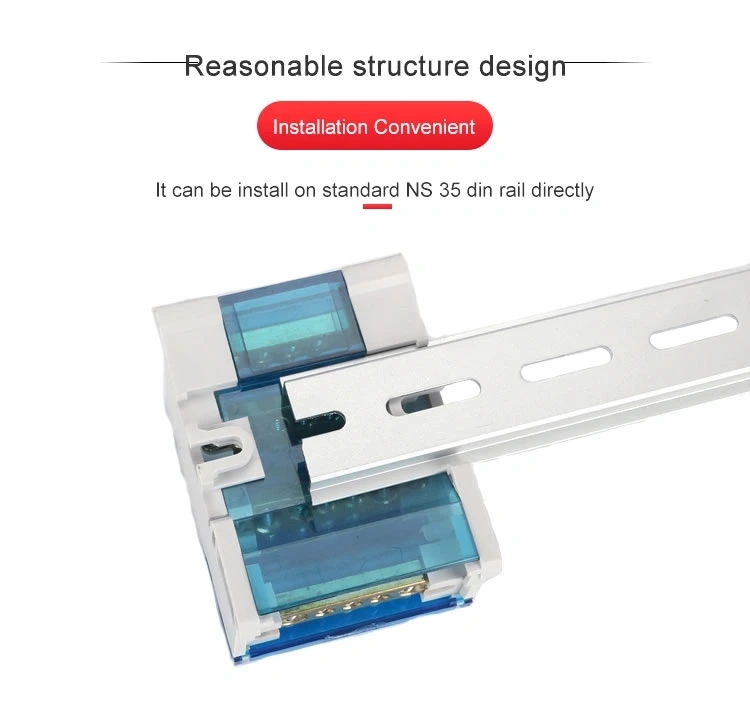

Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
Certification CE/RoHS/CQC/ISO 9001
