Distribution Block

GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution

Model
GP 211
Type
Terminal Block
Material
Copper
Application
Electrical Connections
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
Square
Interface Type
AC/DC
Certification
Ce, CQC, RoHS
Dimension
L100/H50/W45 mm
Hole Quantity
2 X 11
Brass Bar
6.5 X 12mm
Cross Section
35mm²
Connection Method
Screw Connection
Contact Now
GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution
GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution

GP 211 Installation 35mm DIN Rail Terminal Block Power Distribution

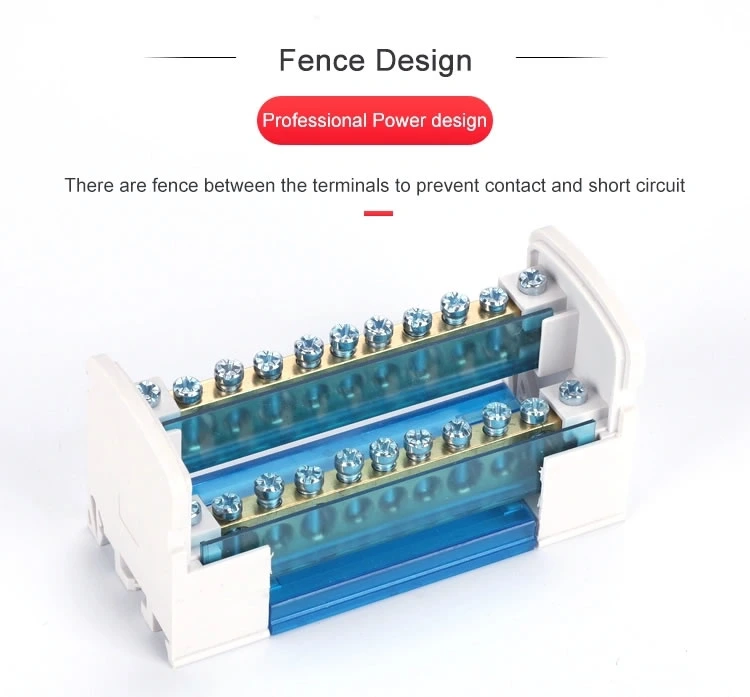

The primary function of a distribution block is to supply power more efficiently to a series of devices. The secondary function is to isolate short circuit incidents to prevent complete shutdown from occurring.

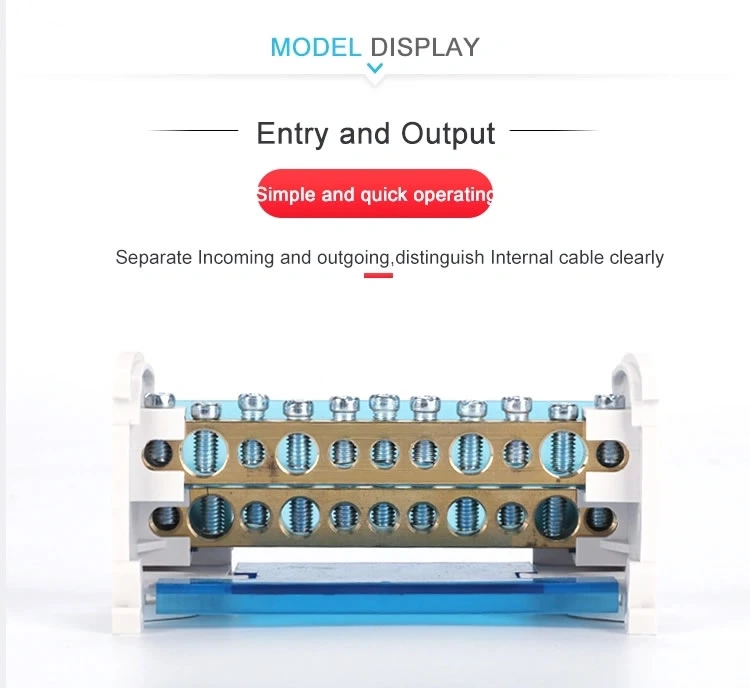

Distribution blocks can handle a range of frequencies and currents. Using distribution blocks requires only one large wire on the input side to link each connected device back to the power source. This eliminates the need for separate wiring of each device.

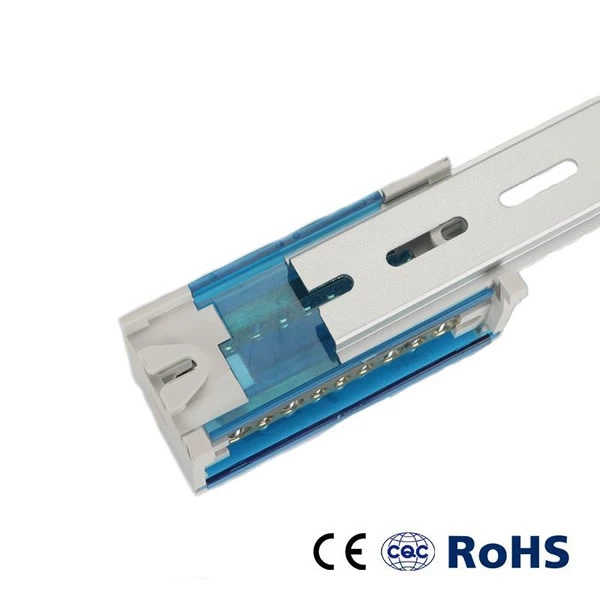

  1. According to the different mounting environment, it can be mounted by standard U-type DIN rail or panel screw mounted
  2. Space saving: compact
  3. Tinned copper block: high conductivity
  4. Visual inspection of wire: confirmation of connection

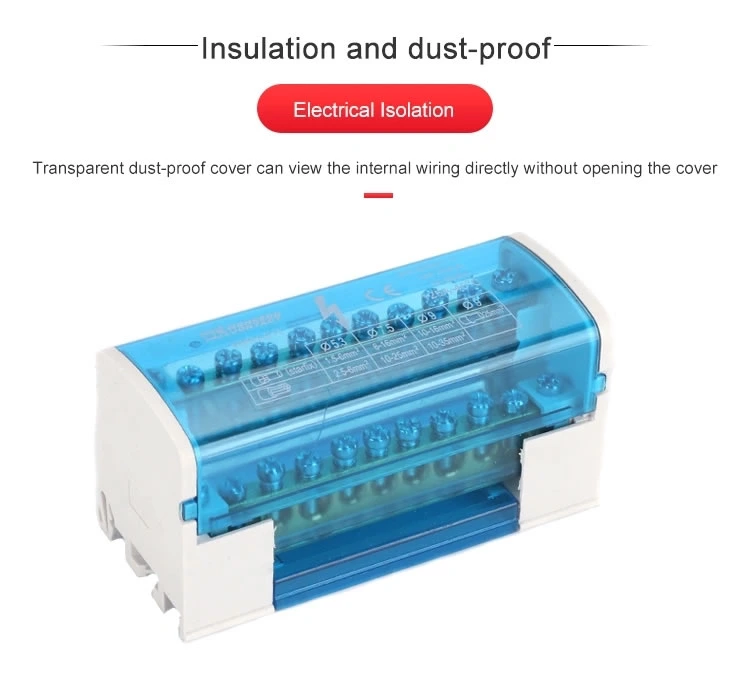

  5. Hinged or removable cover: easy wiring

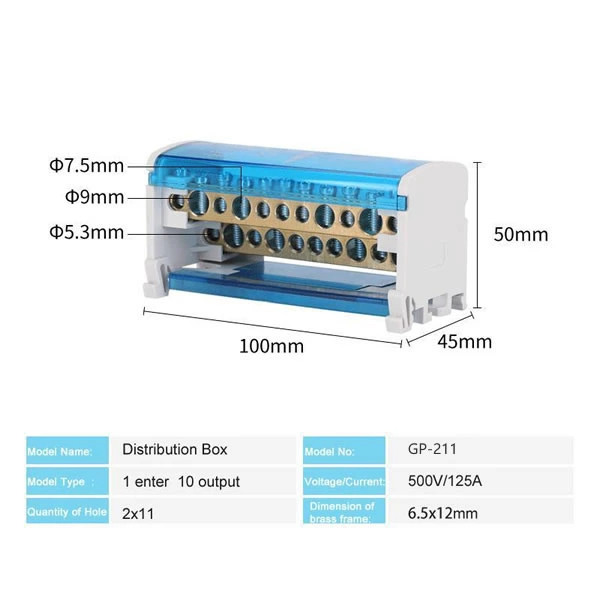

Technical Parameters

Model No. GP 211
Color Blue and Gray
Length/Height/Wide (mm) 100/50/45
Connection method Screw connection
Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 500V/125A
Quantity of Hole 2X11
Dimension for Brass Conductor 6.5*12mm

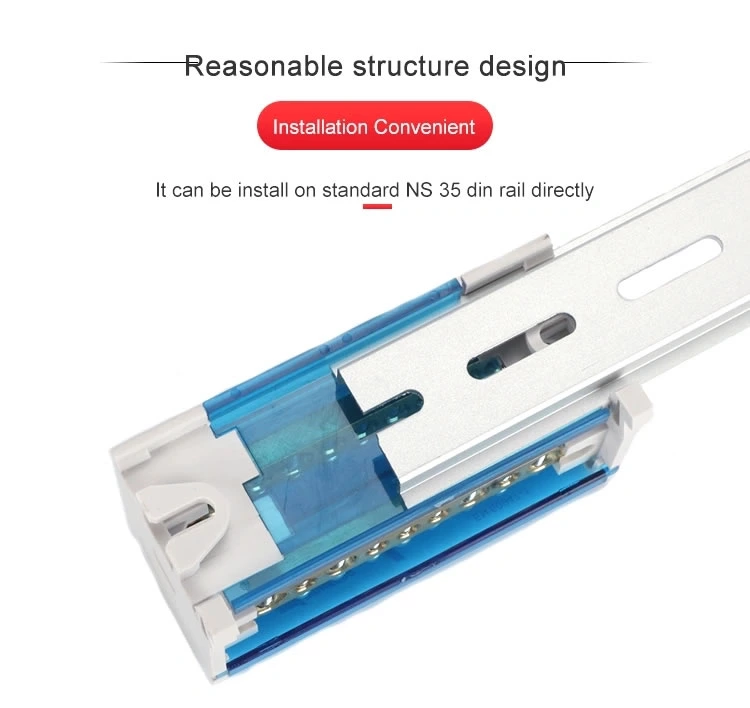

Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
Certification CE/RoHS/CQC/ISO 9001
