Distribution Block

GP 207 Modular Screw Connection Distribution Block DIN

Model
GP 207
Type
Terminal Block
Material
Copper
Application
Electrical Connections
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
Square
Interface Type
AC/DC
Certification
Ce, CQC, RoHS
Dimension
L67/H50/W45 mm
Hole Quantity
2 X 7
Brass Bar
6.5 X 12mm
Cross Section
35mm²
Connection Method
Screw Connection
Contact Now
GP 207 Modular Screw Connection Distribution Block DIN
GP 207 Modular Screw Connection Distribution Block DIN GP 207 Modular Screw Connection Distribution Block DIN GP 207 Modular Screw Connection Distribution Block DIN GP 207 Modular Screw Connection Distribution Block DIN GP 207 Modular Screw Connection Distribution Block DIN

GP 207 Modular Screw Connection Distribution Block DIN

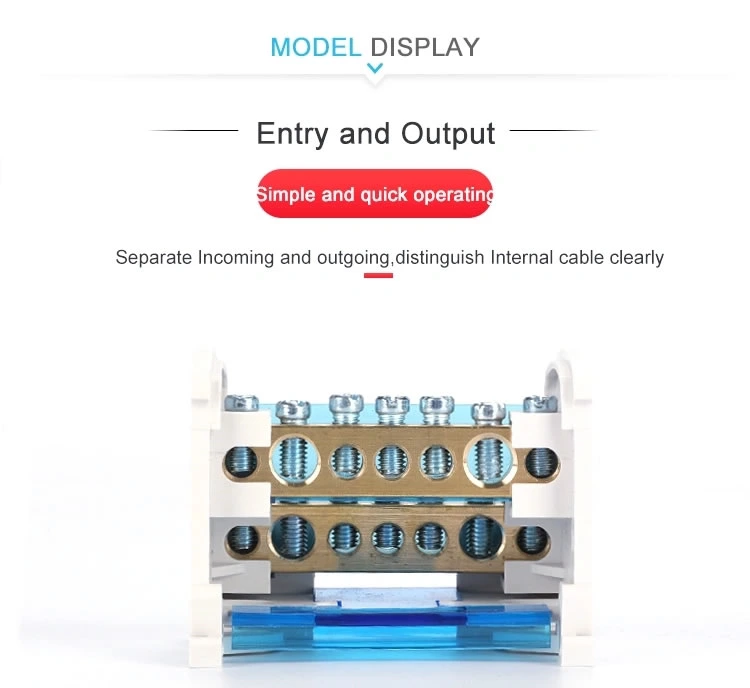

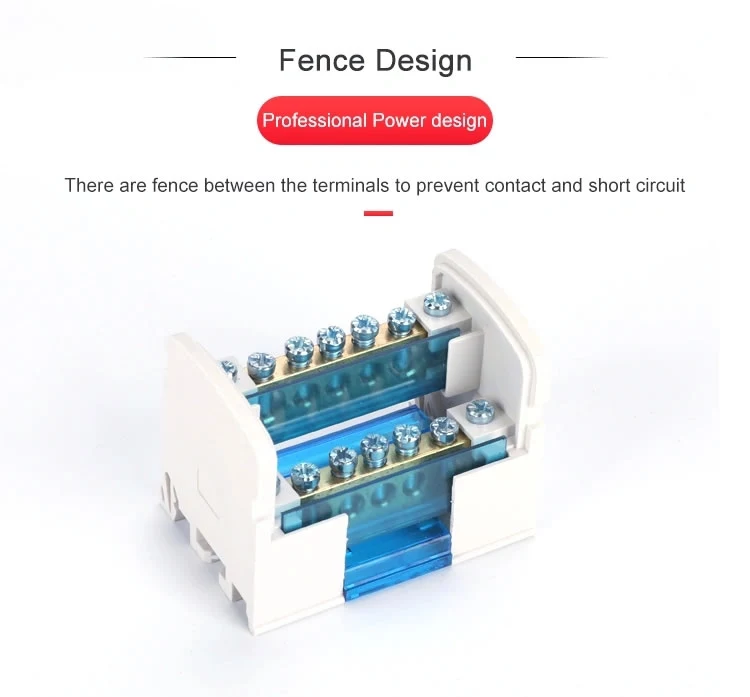

Power distribution blocks offer a safe,convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits.GP series offers DIN-Rail mount installation and an optional hinged safety cover. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material. They also protect personnel from accidentally contacting energized connectors.

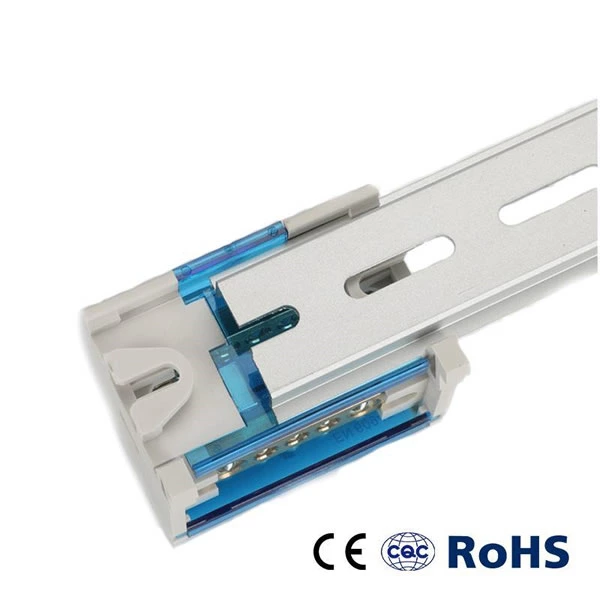

  1. For DIN rail or chassis mounting with screws.

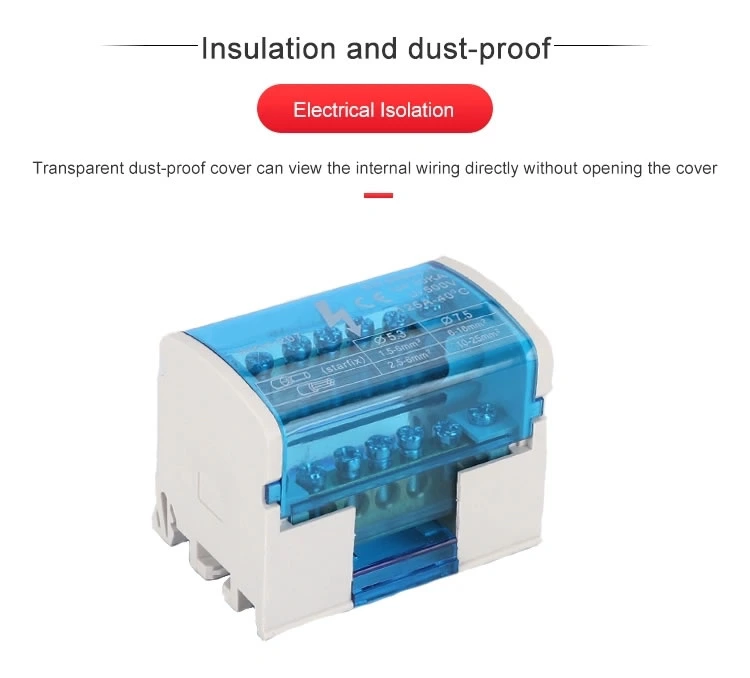

  2. IP20 rated with hinged and removable cover.
  3. High conductivity with excellent electrical contacts.
  4. Compact design.
  5. CE marked and RoHs compliant.

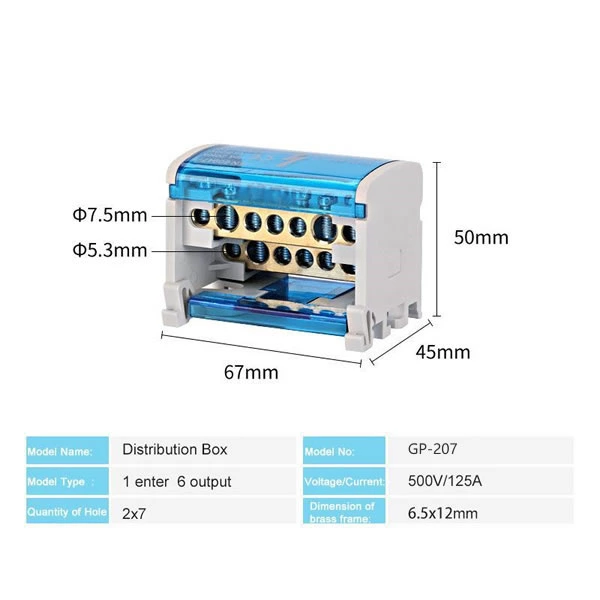

Technical Parameters

Model No. GP 207
Color Blue and Gray
Length/Height/Wide (mm) 67/50/45
Connection method Screw connection
Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 500V/125A
Quantity of Hole 2X7
Dimension for Brass Conductor 6.5*12mm

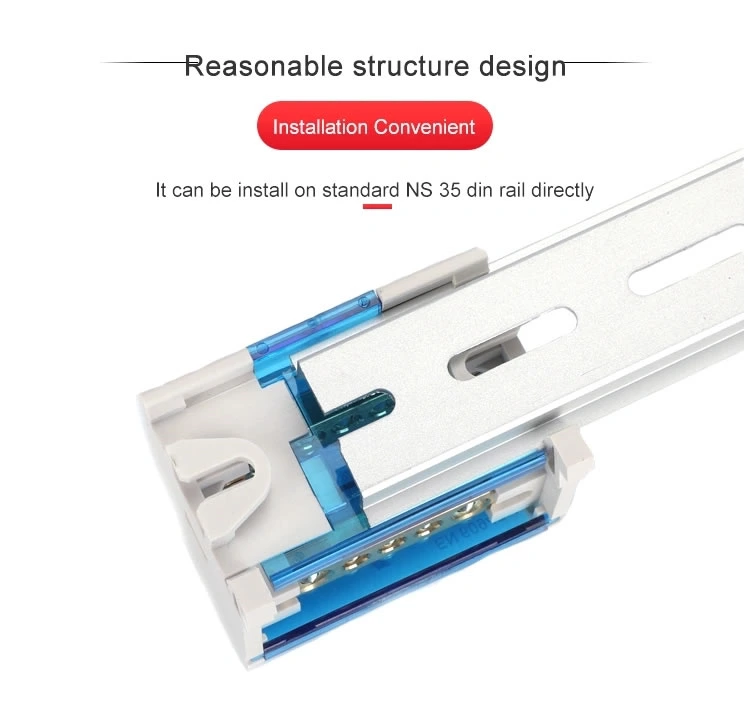

Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
Certification CE/RoHS/CQC/ISO 9001
