Copper Terminal Busbar

WL-021 Terminal Block/Terminal Connector/Terminal Strip

Model
WL-021
Type
Screw
Conductor Size
11 - 20 AWG
Brass
Middle Level
Plastic Holder
ABS.PE
Color
gray . also can be customed
Contact Now
WL-021 Terminal Block/Terminal Connector/Terminal Strip

WL-021 Terminal Block/Terminal Connector/Terminal Strip

Material

  • PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
  • ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
  • Brass, screw: iron plated zinc
  • Voltage: 250V-450V
  • Color: according sample picture or customized

Specifications

Way Spec. L L1 L2 H W Φ Screw Size Plastic Setting
W*h mm
6 8*12 46 46 23 32 30 6 M5*8 ABS.PE
8 8*12 61 61 23 32 30 6 M5*8 ABS.PE
10 8*12 76 76 38 32 30 6 M5*8 ABS.PE
12 8*12 91 91 38 32 30 6 M5*8 ABS.PE
14 8*12 106 106 38 32 30 6 M5*8 ABS.PE

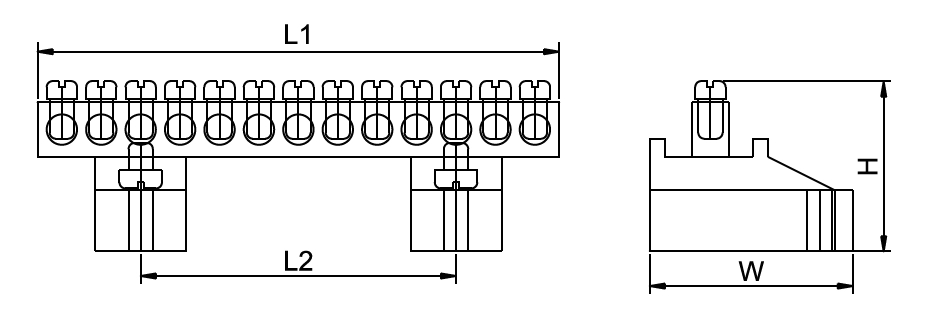

Drawing:
