waterproof terminal block
- Model:
- WL-025
- Type:
- Screw
- Material:
- Brass
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Black. also can be customed
waterproof terminal block
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 3 | 9*15 | 46 | 68 | 58 | 35 | 15 | 9(2*10) | M5*12 | ABS |
| 5 | 9*15 | 68 | 90 | 80 | 35 | 15 | 9(2*10) | M5*12 | ABS |
| 7 | 9*15 | 90 | 112 | 102 | 35 | 15 | 9(2*10) | M5*12 | ABS |
| 8 | 9*15 | 101 | 123 | 113 | 35 | 15 | 9(2*10) | M5*12 | ABS |
| 10 | 9*15 | 123 | 145 | 135 | 35 | 15 | 9(2*10) | M5*12 | ABS |
| 12 | 9*15 | 145 | 167 | 157 | 35 | 15 | 9(2*10) | M5*12 | ABS |
| 15 | 9*15 | 178 | 200 | 190 | 35 | 15 | 9(2*10) | M5*12 | ABS |

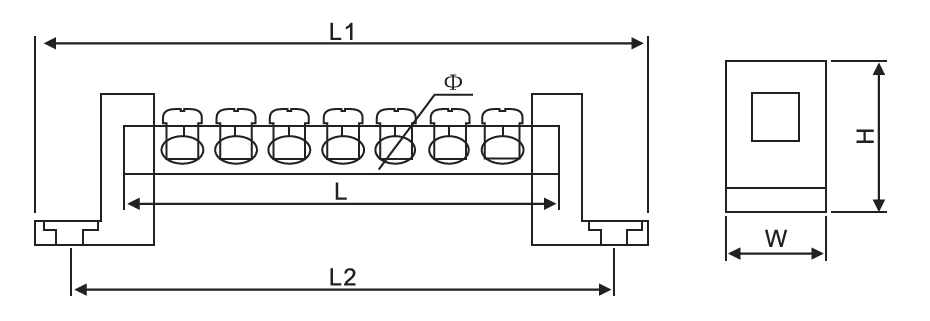

Drawing:
