Screw Terminal Blocks 4*11 250A
- Model:
- WL-017/420
- Type:
- Screw
- Material:
- Brass
- Application:
- Wire Connecting
- Rated Voltage:
- 250V-450V
- Conductor Size:
- 11 - 20 AWG
- Color:
- White
Screw Terminal Blocks 4*11 250A
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Itme NO. | Spec. | Rated current (A) | Rated voltage (V) | L1 | L2 | H | W | Max. section | Hole.Qty | Plastic Setting |
| W*h | MM | |||||||||
| 420 | 4*15 | 200A | 500V | 280 | 128 | 115 | 190 | 75mm² | 4*11 | PA |
| 425 | 5*20 | 250A | 500V | 280 | 128 | 115 | 190 | 100mm² | 4*11 | PA |
| 440 | 6*25 | 400A | 500V | 280 | 128 | 115 | 190 | 185mm² | 4*10 | PA |

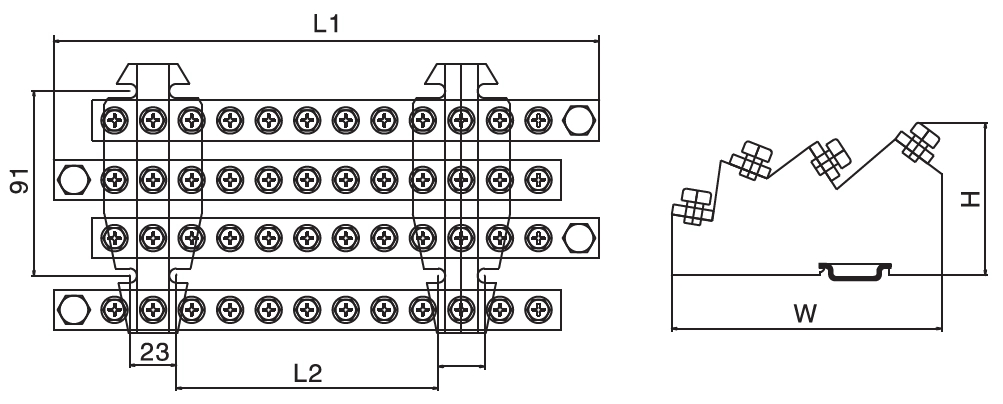

Drawing:
