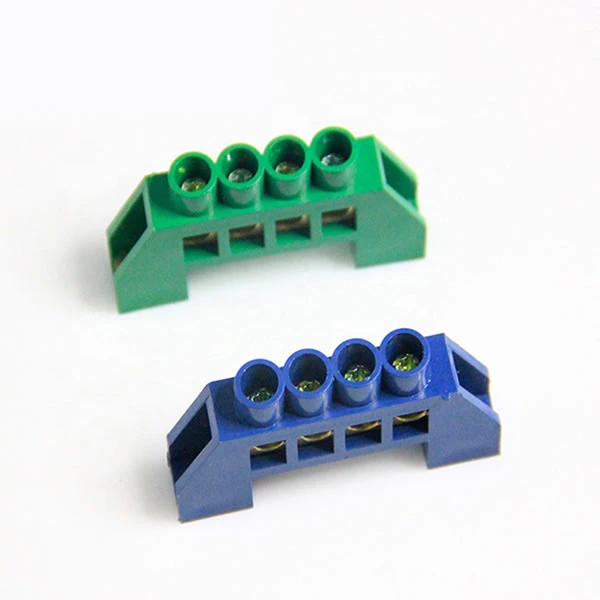

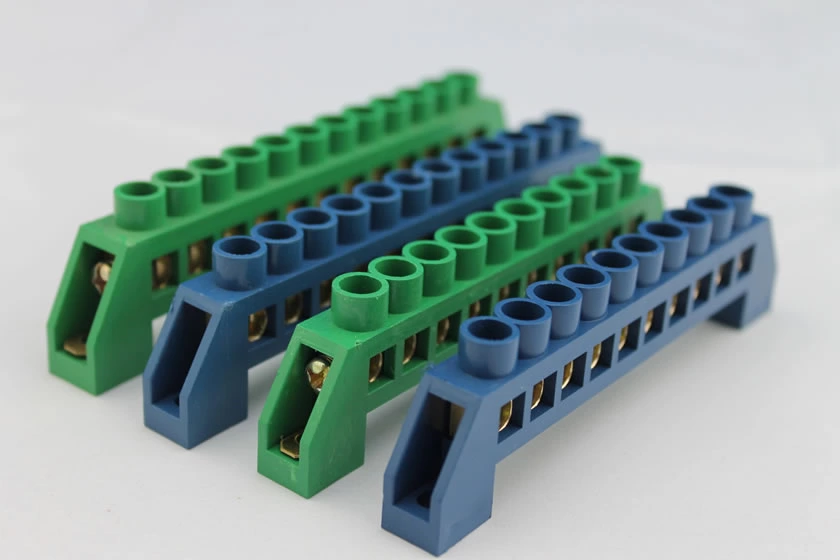

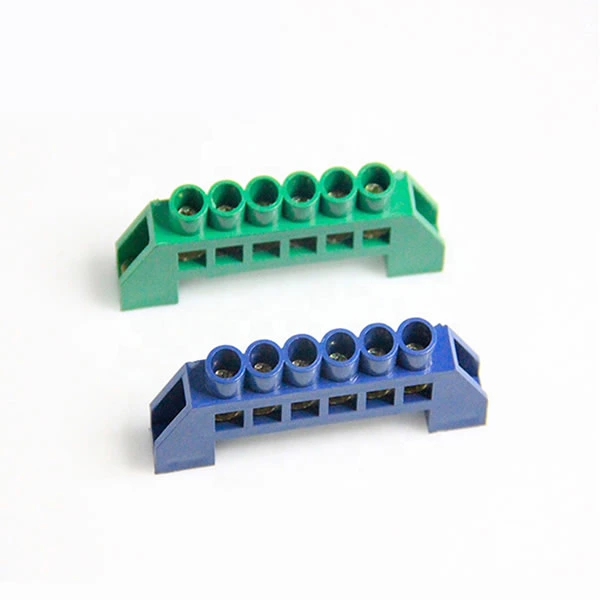

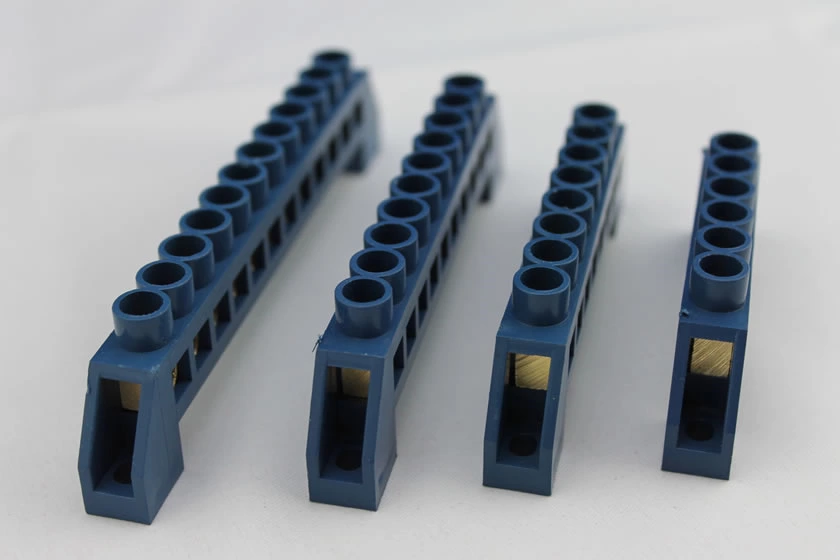

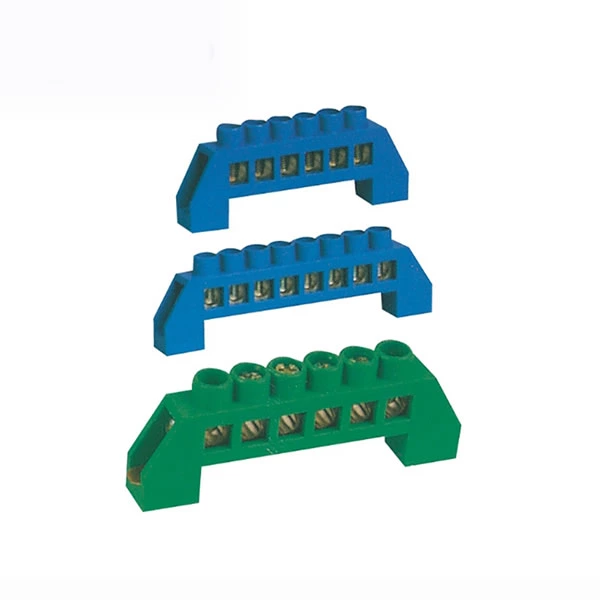

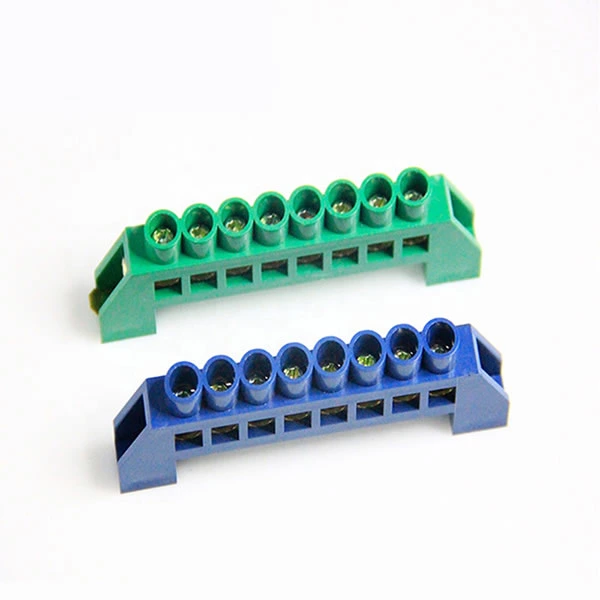

PCB Screw Terminal Block
- Model:
- WL-01/12
- Type:
- Screw
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Bule and Green. also can be customed
PCB Screw Terminal Block:
Material :
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 100°C
- The pressure line screws on : zinc-plated iron
- Rated Voltage: 250V-450V
- Color: according to sample picture or customers' requirements
Specifications :
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W×H | mm | ||||||||
| 4 | 6×9 | 36 | 59.5 | 48.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS |
| 6 | 53 | 76.5 | 65.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 8 | 70 | 93.5 | 82.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 10 | 87 | 110.5 | 99.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 12 | 105 | 127.5 | 116.5 | 29 | 11 | 6 | M4 x 7 | PA, ABS | |
| 4 | 8x12 | 44 | 59.5 | 48.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS |
| 6 | 54 | 76.5 | 65.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |
| 8 | 71 | 93.5 | 82.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |
| 10 | 87 | 110.5 | 99.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |
| 12 | 105 | 127.5 | 116.5 | 32 | 12.5 | 7 | M5 x 10 | PA, ABS | |
Drawings :
