New Design type Neutral Grounding Terminals Block
- Model:
- WL-020/8
- Type:
- Screw
- Material:
- Brass
- Conductor Size:
- 11 - 20 AWG
- Plastic Holder:
- ABS.PE
- Color:
- Black and Gray. also can be customed
New Design type Neutral Grounding Terminals Block :
Material :
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 100°C
- The pressure line screws on : zinc-plated iron
- Rated Voltage: 250V-450V
- Color: according to sample picture or customers' requirements
Specifications :
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W×H | mm | ||||||||
| 6 | 7×11 | 49 | 72.5 | 57 | 19 | 15 | 6.5(2×7) | M5×8 | ABS.PE |
| 8 | 69.5 | 105 | 90 | 19 | 18 | 6.5(2×7)6 | M5×8 | ABS.PE | |

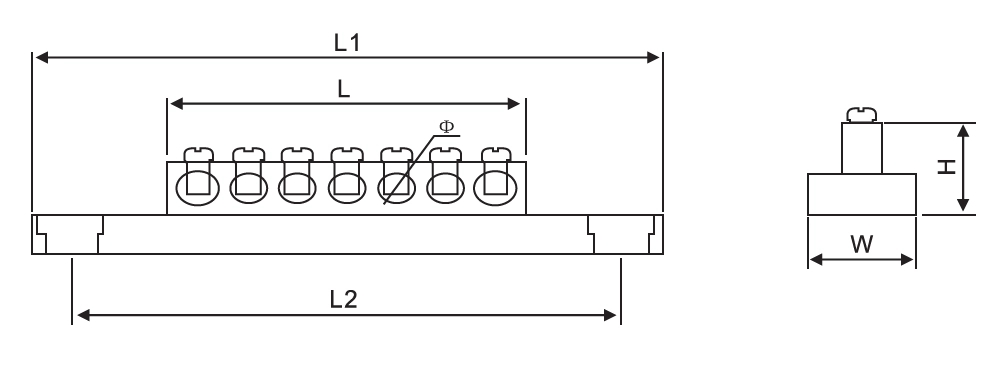

Drawings :
