Neutral terminal block brass bar 3ways zero line row
- Model:
- WL-025/3
- Type:
- Screw
- Material:
- Brass
- Application:
- Wire Connecting
- Rated Voltage:
- 250V-450V
- Conductor Size:
- 5 - 10 AWG
Neutral terminal block brass bar 3ways zero line row
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 3 | 7*10 | 33 | 59.5 | 49.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 4 | 7*10 | 41 | 67.5 | 57.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 5 | 7*10 | 49 | 75.5 | 65.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 6 | 7*10 | 57 | 83.5 | 73.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 7 | 7*10 | 65 | 91.5 | 81.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 8 | 7*10 | 73 | 99.5 | 89.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 10 | 7*10 | 90 | 116.5 | 106.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 12 | 7*10 | 106 | 132.5 | 122.5 | 35 | 15 | 6.5 | M5*9 | ABS |
| 15 | 7*10 | 130 | 156.5 | 146.5 | 35 | 15 | 6.5 | M5*9 | ABS |

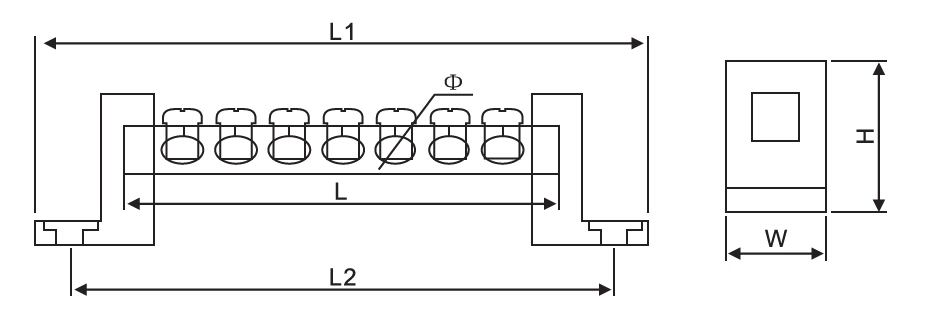

Drawing:
