Hot sale Earth Link Terminal Block Connector
- Model:
- WL-013/6
- Type:
- Screw
- Material:
- Brass
- Application:
- Wire Connecting
- Rated Voltage:
- 250V-450V
- Conductor Size:
- 5 - 10 AWG
- Color:
- White
Hot sale Earth Link Terminal Block Connector
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 4 | 1.2 | 90 | 78 | 30 | 22 | 6(2*8) | PA | ||
| 6 | 1.2 | 105 | 93 | 30 | 22 | 6(2*8) | PA | ||
| 8 | 1.2 | 120 | 108 | 30 | 22 | 6(2*8) | PA | ||
| 10 | 1.2 | 135 | 123 | 30 | 22 | 6(2*8) | PA | ||
| 12 | 1.2 | 150 | 139 | 30 | 22 | 6(2*8) | PA | ||

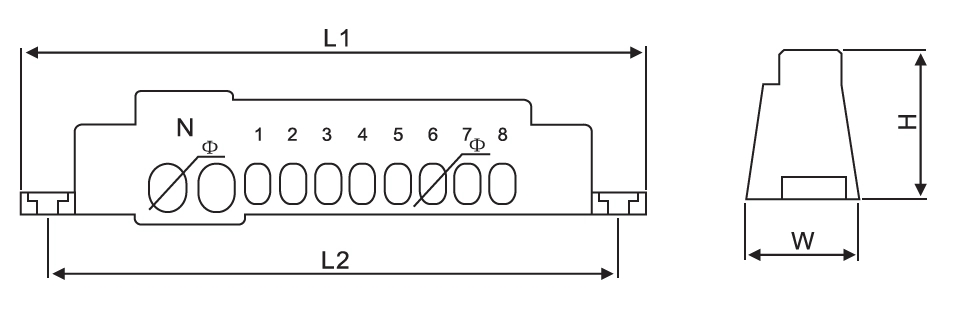

Drawing:
