Din Rail Type Terminal Block 6holes
- Model:
- WL-015/6
- Type:
- Screw
- Material:
- Brass
- Application:
- Wire Connecting
- Rated Voltage:
- 250V-450V
- Conductor Size:
- 5 - 10 AWG
- Color:
- White
Din Rail Type Terminal Block 6holes
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 6 | 6*8 | 46 | 72 | 64 | 14 | 16 | 5 | M4*6 | ABS.PE |
| 10 | 6*8 | 72 | 101 | 93 | 14 | 16 | 4 | M4*6 | ABS.PE |

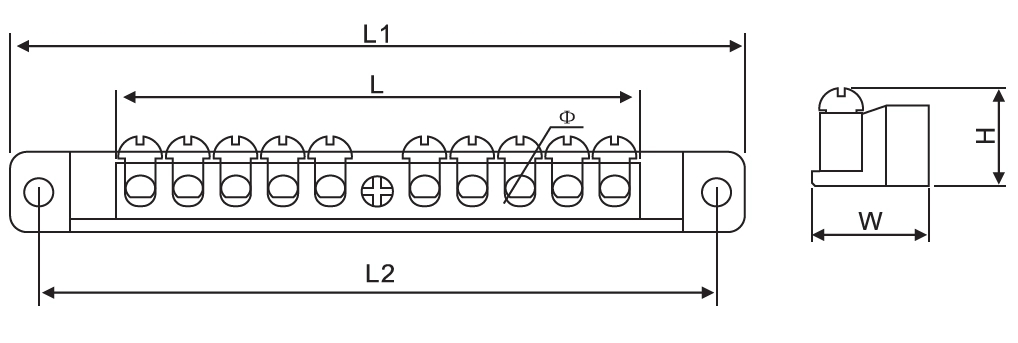

Drawing:
