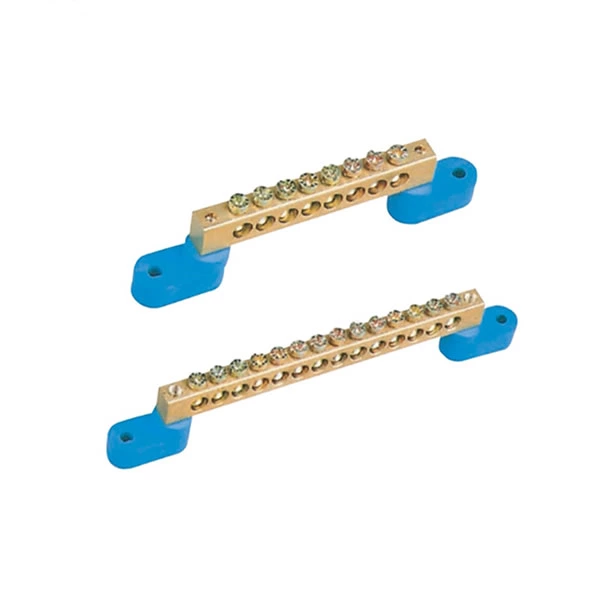

Bus Bar Terminals Block
- Model:
- WL-07
- Type:
- Screw
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Bule and Yellow. also can be customed
Bus Bar Terminals Block
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 6 | 8*12 | 66.5 | 99.5 | 87.5 | 31 | 15 | 6.5 | M5*10 | ABS.PE |
| 7 | 8*12 | 74.5 | 107.5 | 95.5 | 31 | 15 | 6.5 | M5*10 | ABS.PE |
| 8 | 8*12 | 82.5 | 115.5 | 103.5 | 31 | 15 | 6.5 | M5*10 | ABS.PE |
| 10 | 8*12 | 98.5 | 131.5 | 119.5 | 31 | 15 | 6.5 | M5*10 | ABS.PE |
| 12 | 8*12 | 114.5 | 147.5 | 135.5 | 31 | 15 | 6.5 | M5*10 | ABS.PE |

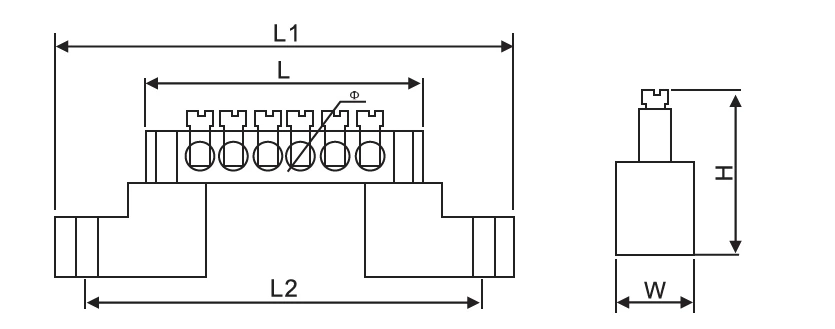

Drawing:
