brass terminal blocks(screw type) with plastic cover
- Model:
- WL-026/1+6
- Type:
- Screw
- Material:
- Brass
- Application:
- Wire Connecting
- Rated Voltage:
- 250V-450V
- Conductor Size:
- 5 - 10 AWG
brass terminal blocks(screw type) with plastic cover
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 1+4 | 9*18 | 64 | 82 | 68 | 29 | 42 | 5.3 | M5*8 | ABS.PE |
| 1+6 | 9*18 | 80 | 98 | 84 | 29 | 42 | 5.3 | M5*8 | ABS.PE |
| 1+8 | 9*18 | 96 | 114 | 100 | 29 | 42 | 5.3 | M5*8 | ABS.PE |

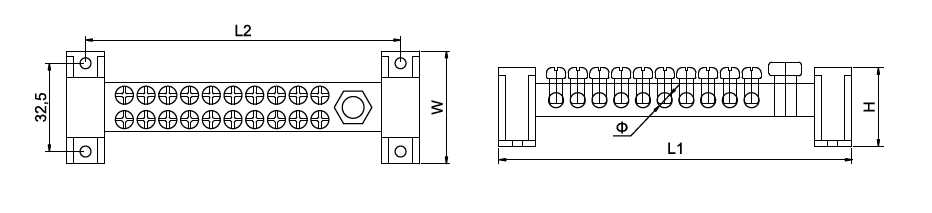

Drawing:
