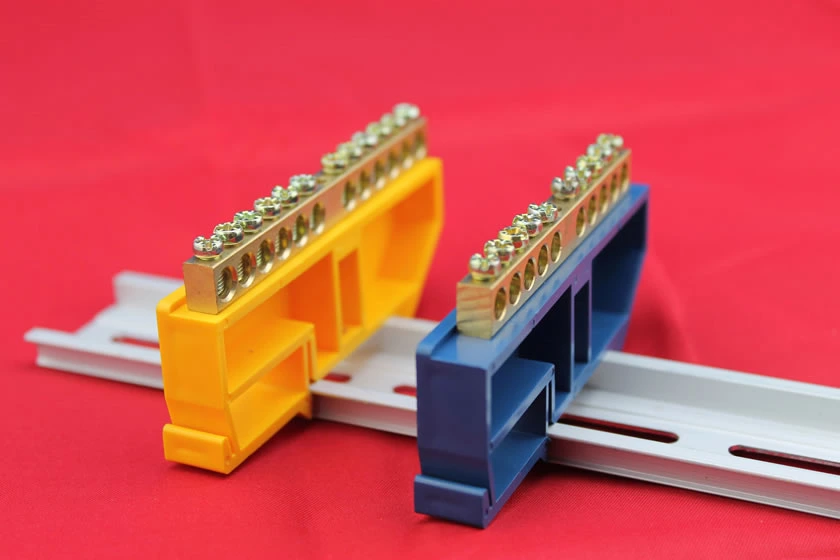

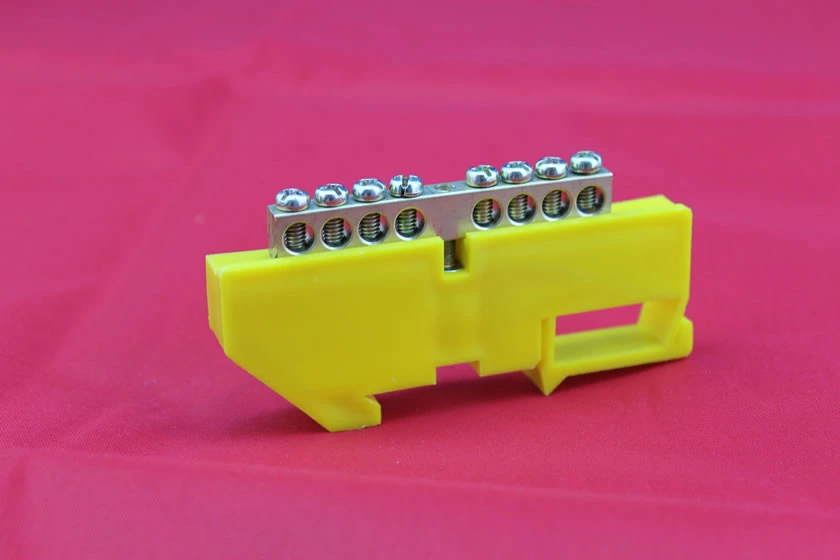

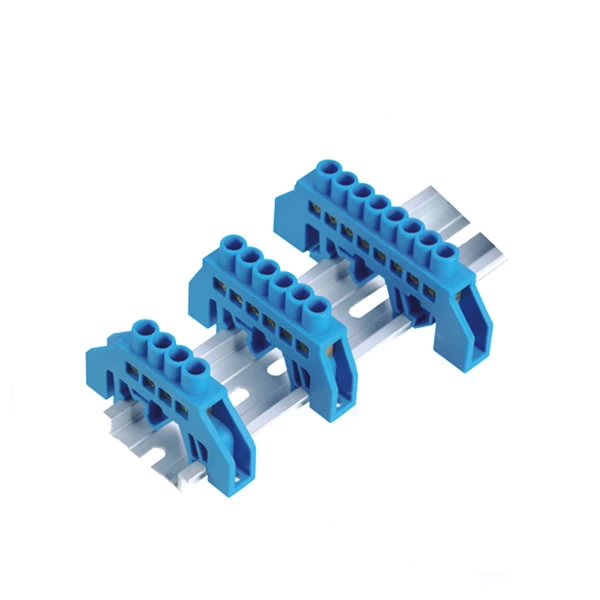

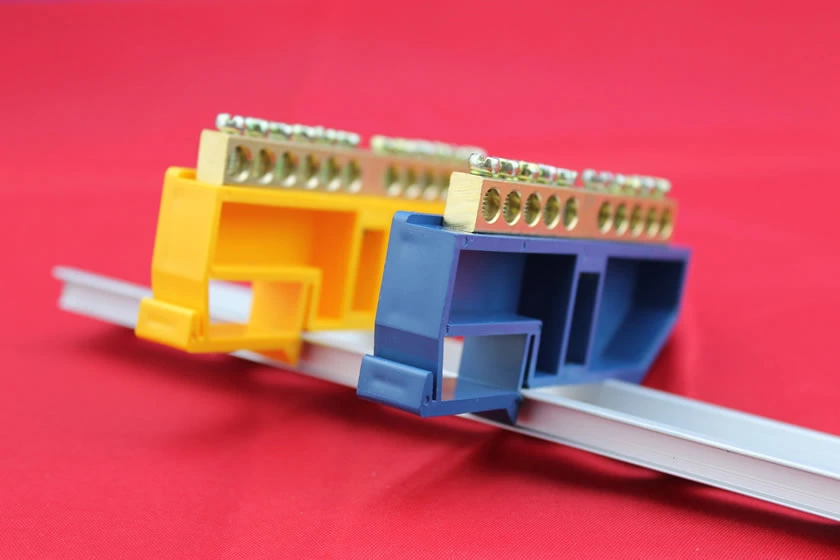

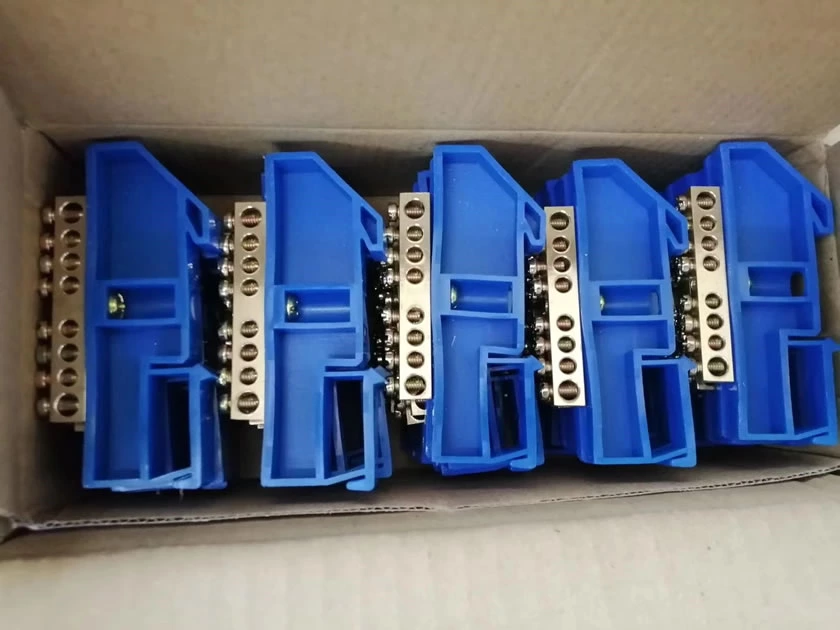

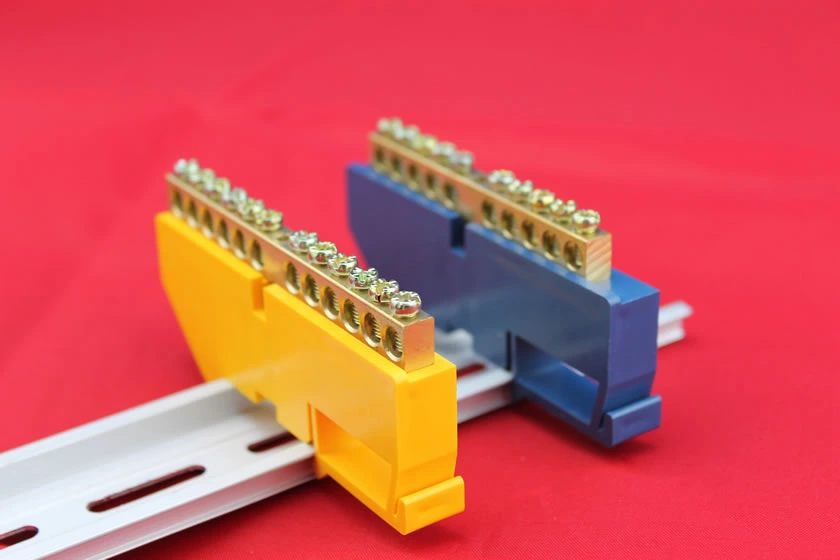

Brass Terminal Block
- Model:
- WL-02/8
- Type:
- Screw
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Bule and Green. also can be customed
Brass Terminal Block :
Material :
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 100°C
- The pressure line screws on : zinc-plated iron
- Rated Voltage: 250V-450V
- Color: according to sample picture or customers' requirements
Specifications :
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W×H | mm | ||||||||
| 8 | 6×9 | 60 | 90 | 35 | 43 | 12 | 5.2 | M4 x 7 | PA, ABS |
| 10 | 73 | 90 | 35 | 43 | 12 | 5.2 | M4 x 7 | PA, ABS | |
| 12 | 86 | 90 | 35 | 43 | 12 | 5.2 | M4 x 7 | PA, ABS | |
| 14 | 99 | 90 | 35 | 43 | 12 | 5.2 | M4 x 7 | PA, ABS | |
| 8 | 8x12 | 71 | 90 | 35 | 46 | 12 | 6.5 | M5 x 10 | ABS, PE |
| 10 | 87 | 90 | 35 | 46 | 12 | 6.5 | M5 x 10 | ABS, PE | |
| 12 | 103 | 103 | 35 | 46 | 12 | 6.5 | M5 x 10 | ABS, PE | |
| 14 | 119 | 119 | 35 | 46 | 12 | 6.5 | M5 x 10 | ABS, PE | |

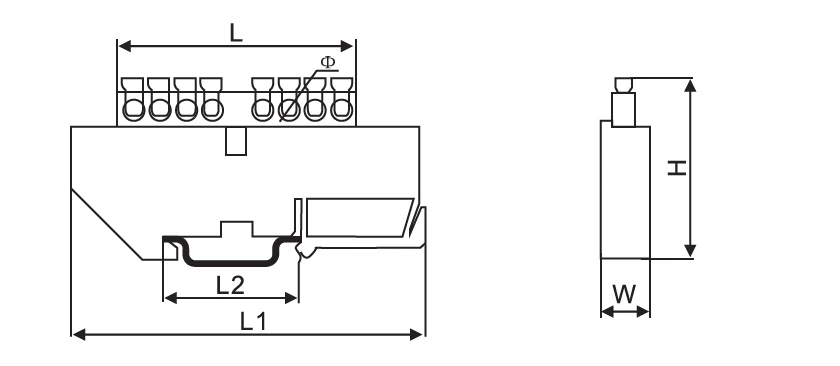

Drawings :
