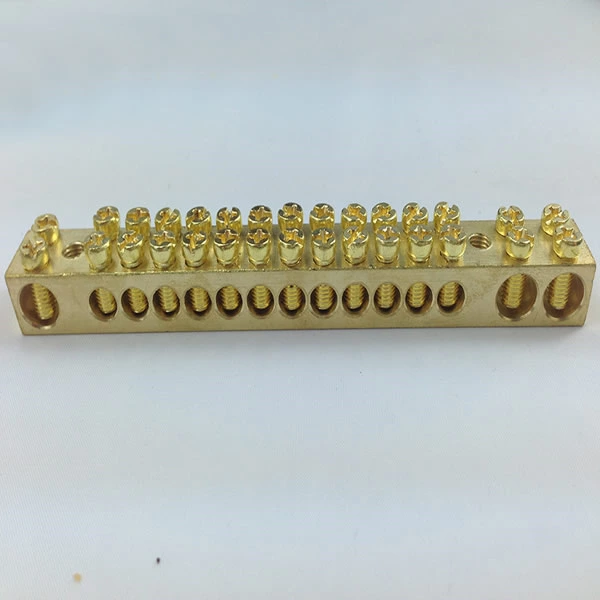

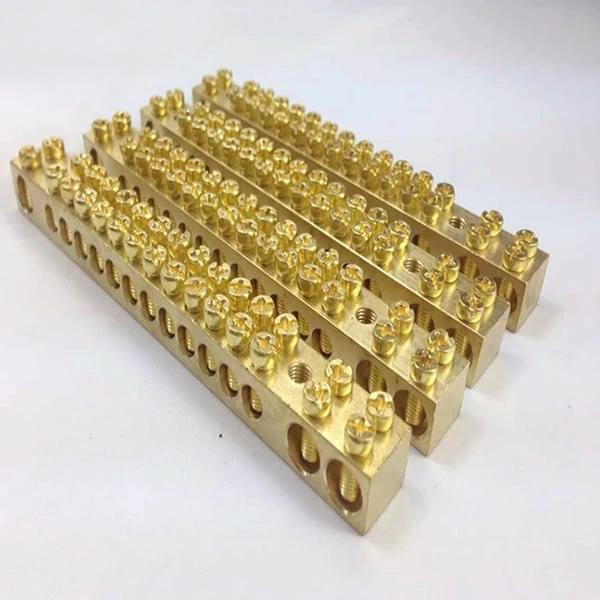

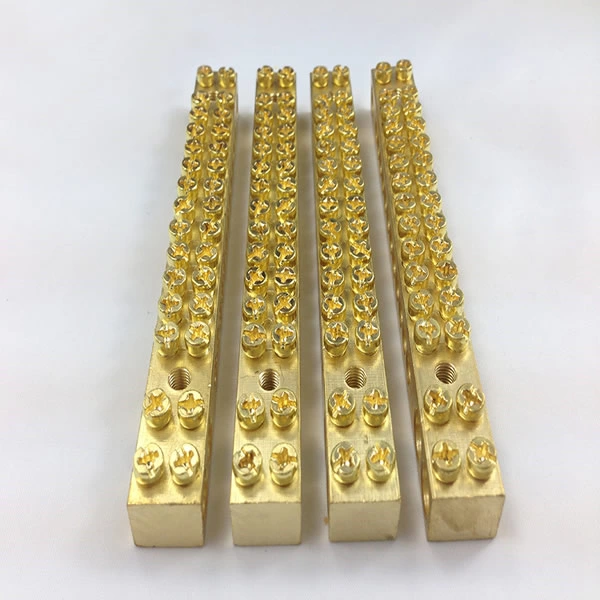

Brass Neutral Link/ Terminal Bars
- Model:
- WL-083
- Type:
- Screw, Screw Terminal
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Color:
- be customed
Brass Neutral Link/ Terminal Bars
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Section cross | Φ | Hole | Screw(m) |
| 6*8 | 5 | 133 | 4 |
| 6*9 | 5.2 | 133 | 4 |
| 7*10 | 6.5 | 110 | 5 |
| 7*11 | 7 | 110 | 5 |
| 8*8 | 5 | 133 | 4 |
| 8*10 | 6.5 | 110 | 5 |
| 8*12 | 7.5 | 100 | 5 |
| 9*9 | 5.2 | 133 | 4 |
| 9*14 | 8 | 100 | 5 |
| 10*10 | 6.5 | 110 | 5 |
| 12*12 | 7.5 | 100 | 5 |
| 3*15 | 60 | 5 | |
| 3*20 | 52 | 8 | |
| 3*25 | 52 | 8 | |
| 3*30 | 52 | 8 |
