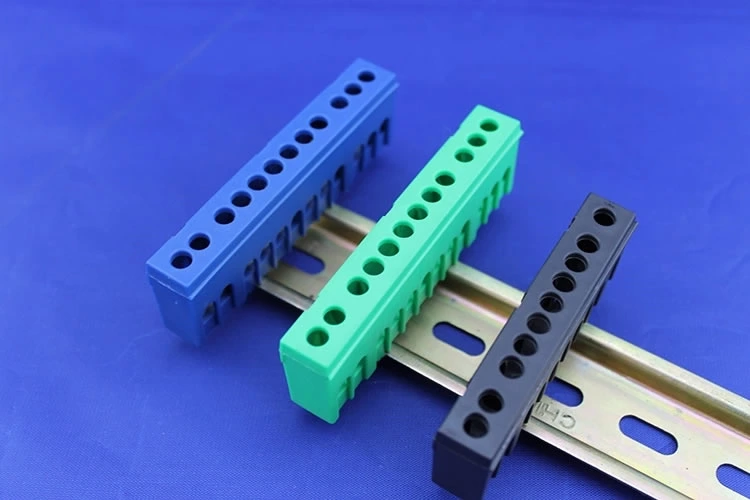

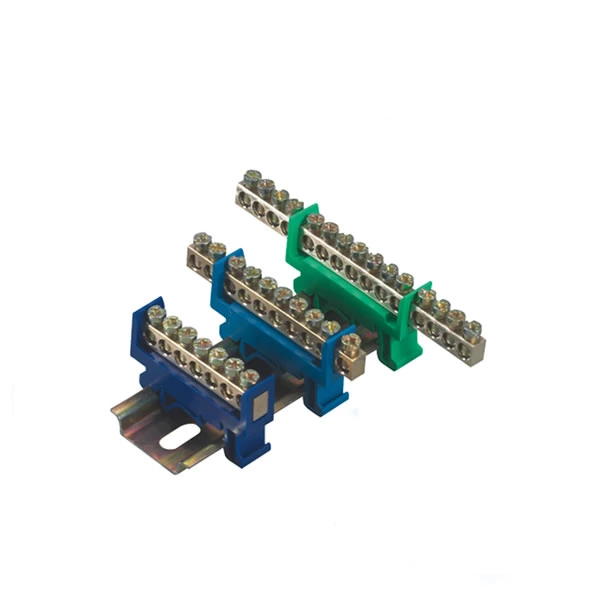

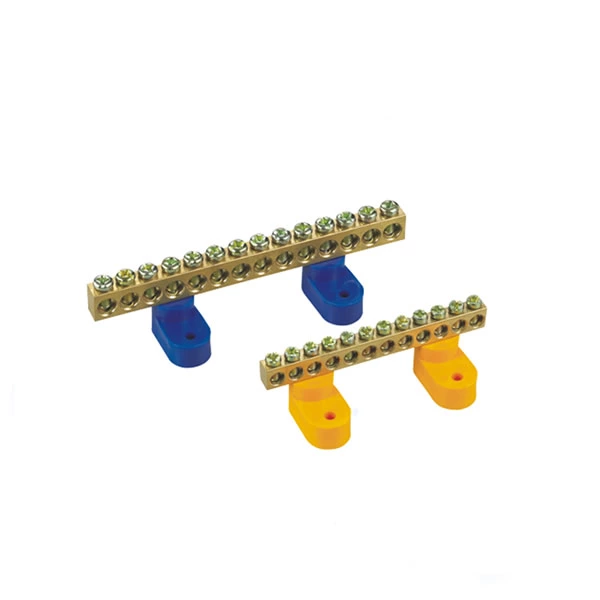

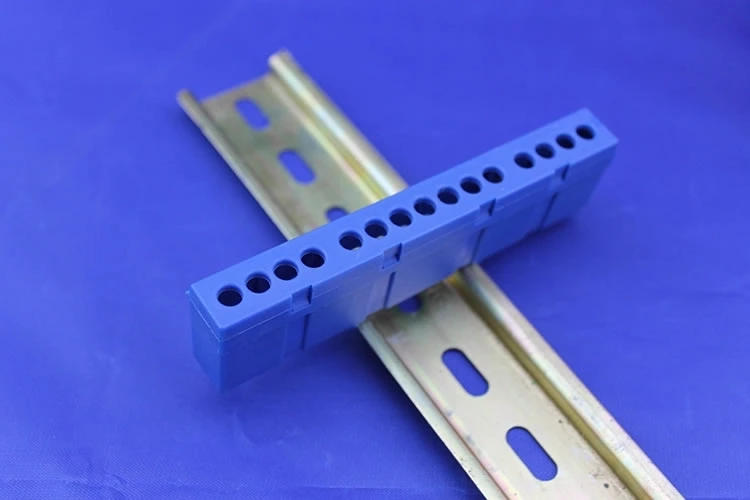

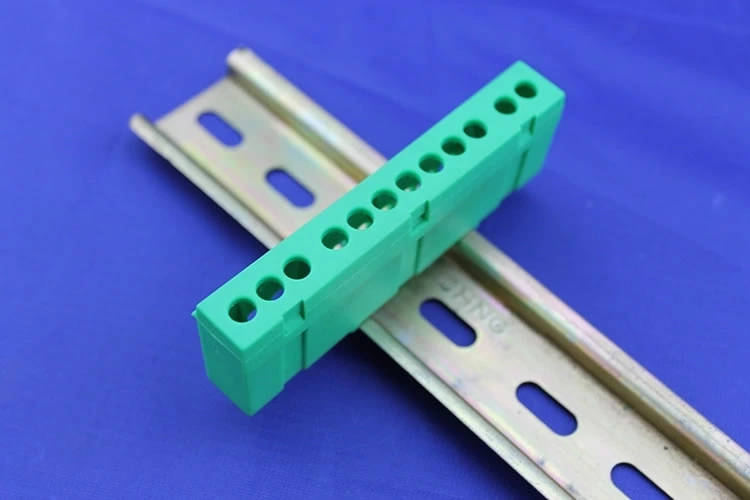

Brass Battery Terminal With Green Color Holder
- Model:
- WL-09/12
- Type:
- Screw
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Bule and Green. also can be customed
Brass Battery Terminal With Green Color Holder
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 7 | 6*9 | 51 | 55 | 35 | 32 | 14 | 5.3 | M5*8 | PA |
| 10 | 6*9 | 72 | 76 | 35 | 32 | 14 | 5.3 | M5*8 | PA |
| 12 | 6*9 | 85 | 89 | 35 | 32 | 14 | 5.3 | M5*8 | PA |
| 15 | 6*9 | 104.5 | 108.5 | 35 | 32 | 14 | 5.3 | M5*8 | PA |

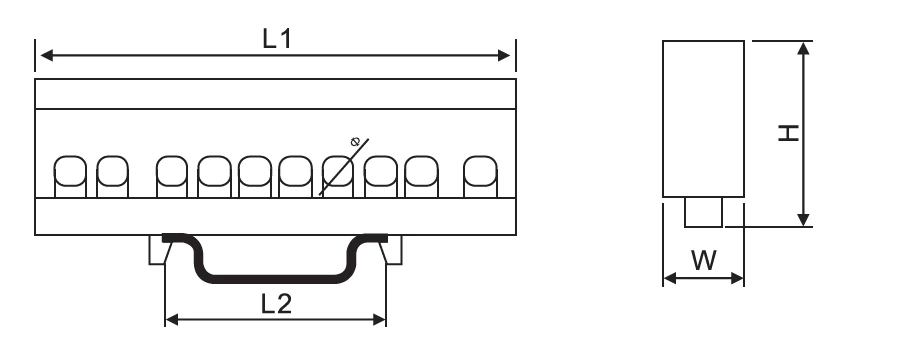

Drawing:
