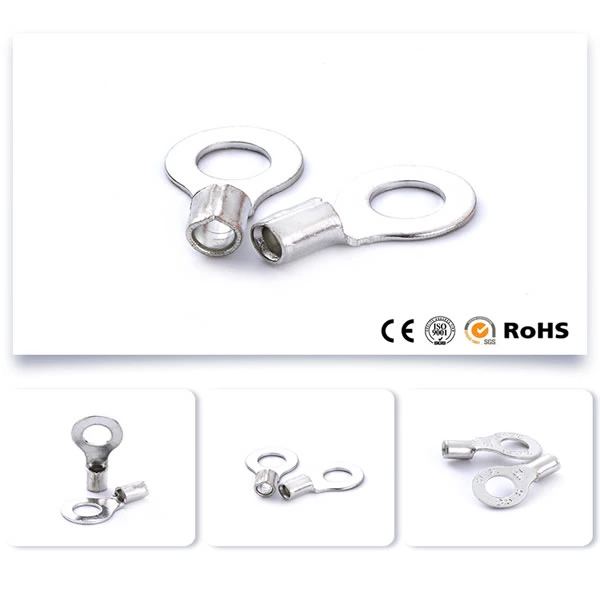

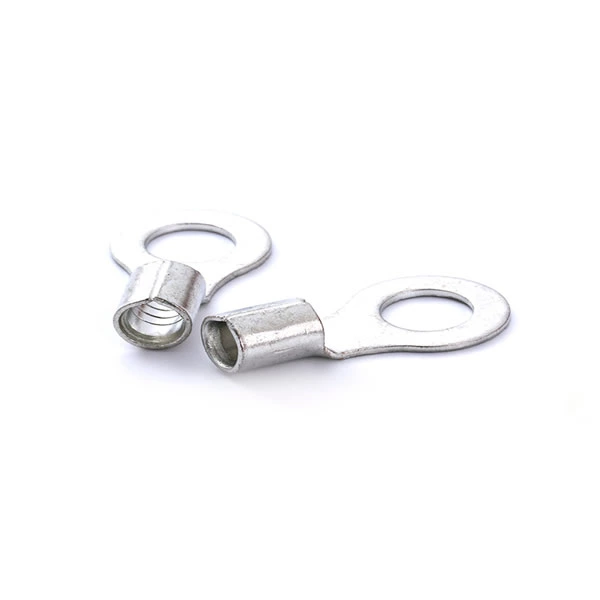

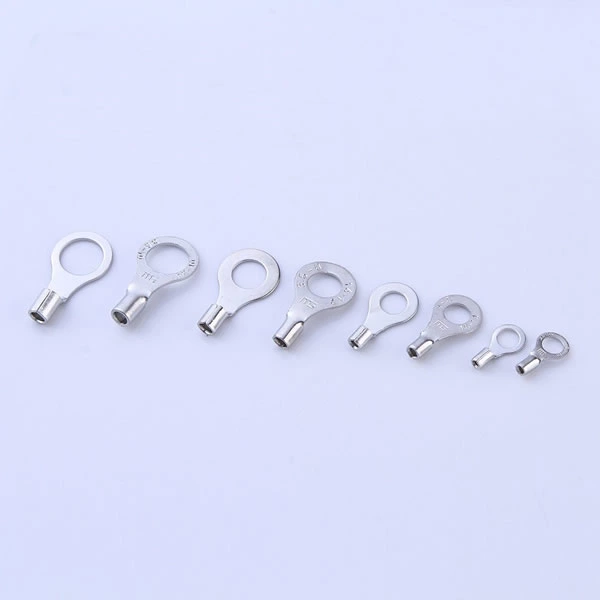

Standard Ce Ring Wire Joint Electrical Bare Non-Insulated Cable Lug Terminals
- Model:
- RNB
- Type:
- Insulated Cord End Terminals
- Material:
- Copper
- Character:
- Insulation
- Species:
- Terminal
- Production Process:
- Cold Pressing
- Shape:
- Round
- Interface Type:
- BNC
- Certification:
- BS, VDE
Standard CE Wire Joint Electrical Bare Non-Insulated cable lug terminals
| Conductor section:0.5-1.5mm2 (A.W.G 22-16) 1max=19A | |||||||||
| Item No | American | d2(mm) | Dimension(mm) | ||||||
| Bolt number | B | L | F | E | D | d | |||
| RNB1.25-3.2 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 3.4 1.7 | |||
| RNBS1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | ||||
| RNBM1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | ||||
| RNBL1.25-3.5 | #6 | 3.7 | 8 | 15.8 | 7 | ||||
| RNBS1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | ||||
| RNBL1.24-4 | #8 | 4.3 | 8 | 15.8 | 7 | ||||
| RNB1.25-5 | #10 | 5.3 | 8 | 15.8 | 7 | ||||
| RNBL1.25-5 | #10 | 5.3 | 9.8 | 18 | 8.5 | ||||
| RNBS1.25-6 | 1/4 | 6.4 | 9.8 | 18 | 8.5 | ||||
| RNB1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 | ||||
| RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | ||||
| RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | ||||
| RNB1.25-12 | 1/2 | 13 | 19.2 | 31 | 16.5 | ||||
| Conductor section:1.5-2.5mm2 (A.W.G 16-14) 1max=27A | |||||||||
| Item No | American | d2(mm) | Dimension(mm) | ||||||
| Bolt number | B | L | F | E | D | d | |||
| RNB2-3.2 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 4.1 2.3 | |||
| RNBS2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 | ||||
| RNBM2-3.5 | #6 | 3.7 | 6.6 | 16 | 7 | ||||
| RNBL2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 | ||||
| RNBS2-4 | #8 | 4.3 | 6.6 | 16 | 7 | ||||
| RNBL2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 | ||||
| RNBS2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | ||||
| RNBL2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | ||||
| RNB2-6 | 1/4 | 6.4 | 12 | 21.8 | 11 | ||||
| RNB2-8 | 5/16 | 8.4 | 12 | 21.8 | 11 | ||||
| RNB2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | ||||
| RNB2-12 | 1/2 | 13 | 19.2 | 31 | 16.9 | ||||
| Conductor section:35-50mm2 (A.W.G 1/0) 1max=215A | |||||||||
| ITEM NO. | American | d2(mm) | Dimension(mm) | ||||||
| Bolt number | B | L | F | E | D | d | |||
| RNB60-6 | 1/4 | 6.4 | 22.0 49.7 20.7 | 18.0 15.4 11.4 | |||||
| RNB60-8 | 5/16 | 8.4 | |||||||
| RNB60-10 | 3/8 | 10.5 | |||||||
| RNB60-11 | 7/16 | 11.5 | |||||||
| RNB60-12 | 1/2 | 13 | |||||||
| RNB60-14 | 9/16 | 15 | 32.0 57.5 23.5 | ||||||
| RNB60-16 | 5/8 | 17 | |||||||
| RNB60-18 | 11/16 | 19 | |||||||
| RNB60-20 | 3/4 | 21 | |||||||
| RNB60-22 | 7/8 | 23 | |||||||
| Conductor section:50-70mm2 (A.W.G 2/0) 1max=235A | |||||||||
| ITEM NO. | American | d2(mm) | Dimension(mm) | ||||||
| Bolt number | B | L | F | E | D | d | |||
| RNB70-6 | 1/4 | 6.4 | 24.0 51.0 20.0 | 19.0 17.5 13.3 | |||||
| RNB70-8 | 5/16 | 8.4 | |||||||
| RNB70-10 | 3/8 | 10.5 | |||||||
| RNB70-11 | 7/16 | 11.5 | |||||||
| RNB70-12 | 1/2 | 13 | |||||||
| RNB70-14 | 9/16 | 15 | 32.0 61.0 26.0 | ||||||
| RNB70-16 | 5/8 | 17 | |||||||
| RNB70-18 | 11/16 | 19 | |||||||
| RNB70-20 | 3/4 | 21 | |||||||
| RNB70-22 | 7/8 | 23 | |||||||
