Dtl-1 Copper Aluminium Connector Terminals Bimetallic Lug Terminals
- Model:
- DTL-1
- Type:
- Insulated Cord End Terminals
- Material:
- Copper Aluminium
- Application:
- Conduct Electricity
- Character:
- Insulation
- Species:
- Terminal
- Production Process:
- Cold Pressing
- Shape:
- Round
- Interface Type:
- BNC
- Certification:
- BS, VDE
- Conductor Size:
- 16mm2 to 300mm2

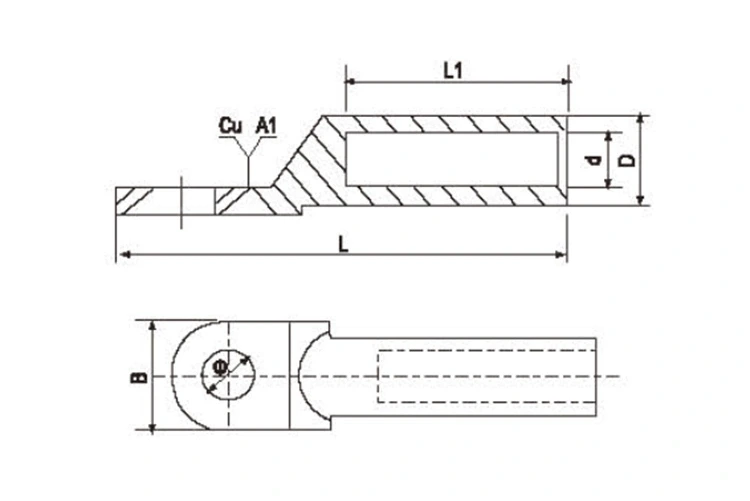

DTL-1 copper aluminium connector terminals bimetallic lug terminals
| Item No | Dimension(mm) | |||||||
| φ | D | d | L | L1 | B | |||
| DTL-1-10 | 8.5 | 10 | 6 | 62 | 28 | 16 | ||
| DTL-1-16 | 8.5 | 11 | 6 | 68 | 30 | 16 | ||
| DTL-1-25 | 8.5 | 12 | 7 | 70 | 33 | 18 | ||
| DTL-1-35 | 10.5 | 14 | 8.5 | 80 | 36 | 20.5 | ||
| DTL-1-50 | 10.5 | 16 | 9.8 | 85 | 38 | 23 | ||
| DTL-1-70 | 12.5 | 18 | 11.5 | 95 | 43 | 26 | ||
| DTL-1-95 | 12.5 | 21 | 13.5 | 104 | 46 | 28 | ||
| DTL-1-120 | 14.5 | 23 | 15 | 112 | 49 | 30 | ||
| DTL-1-150 | 14.5 | 25 | 16.5 | 120 | 51 | 34 | ||
| DTL-1-185 | 16.5 | 27 | 18.5 | 125 | 55 | 37 | ||
| DTL-1-240 | 16.5 | 30 | 21 | 136 | 60 | 40 | ||
| DTL-1-300 | 21 | 34 | 23.5 | 155 | 66 | 50 | ||
| DTL-1-400 | 21 | 38 | 27 | 170 | 75 | 50 | ||
| DTL-1-500 | 21 | 47 | 29 | 190 | 75 | 60 | ||
| DTL-1-630 | 21 | 54 | 35 | 220 | 85 | 80 | ||
| DTL-1-800 | 21 | 60 | 38 | 260 | 85 | 100 | ||
