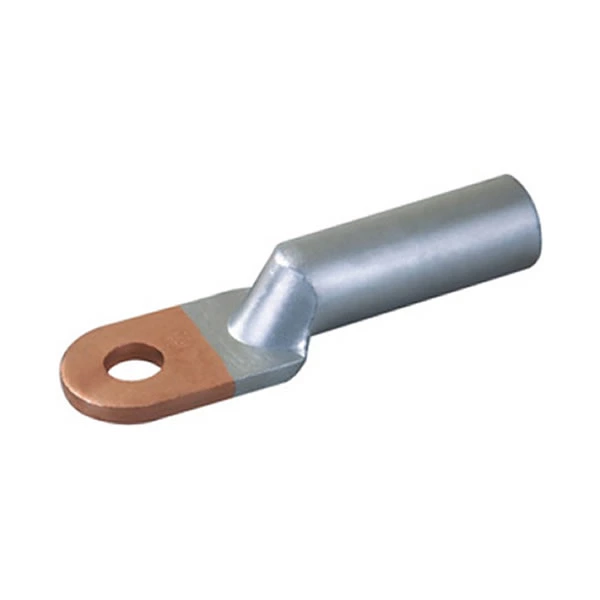

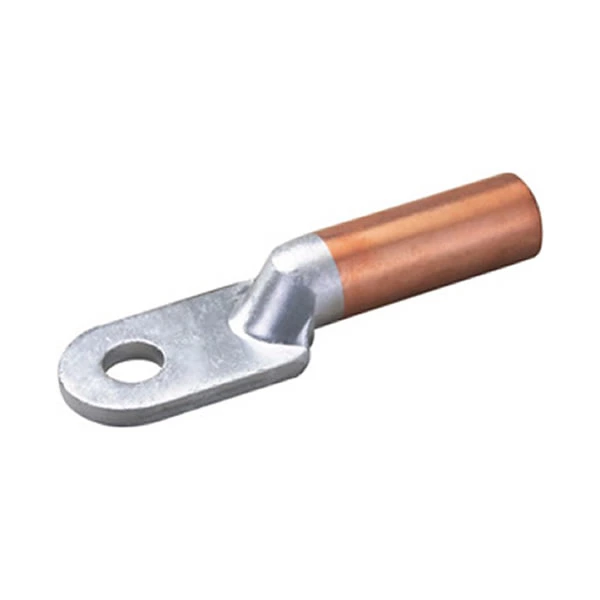

Copper-Aluminium Terminal A, B, C, D Type
- Model:
- A type
- Type:
- Single Hole Terminals
- Material:
- Copper
- Application:
- Conduct Electricity
- Character:
- High Temperature Resistance
- Species:
- Terminal
- Production Process:
- Cold Pressing
- Shape:
- Round
- Interface Type:
- AC/DC
- Certification:
- Ce
Copper-Aluminium Terminal A, B, C, D Type

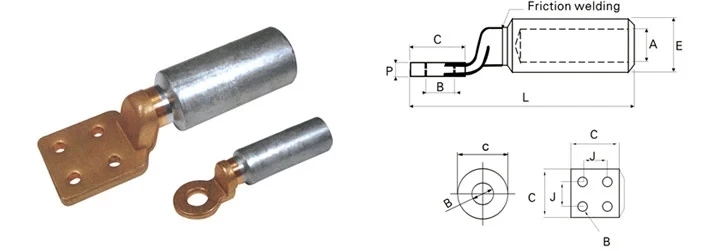

Al-Cu(A-Type)
End Aluminium-Copper lugs(friction welded)
Aluminium inside covered with neutral grease for a best electrical contact, closed by a protection cap.
| Part No. | Section Area(mm2) | A(mm) | E(mm) | C(mm) | B(mm) | J(mm) | L(mm) | P(mm) |
| CAU 16 | 16 | 5.5 | 16 | 20 | 10.5 | ... | 79 | 4.5 |
| CAU 25 | 25 | 6.5 | 16 | 20 | 10.5 | ... | 79 | 4.5 |
| CAU 35 | 35 | 8 | 16 | 25 | 12.8 | ... | 86 | 5 |
| CAU 50 | 50 | 9 | 20 | 25 | 12.8 | ... | 86 | 5 |
| CAU 70 | 70 | 11 | 20 | 25 | 12.8 | ... | 86 | 5 |
| CAU 95 | 95 | 12.5 | 20 | 25 | 12.8 | ... | 86 | 5 |
| CAU 120 | 120 | 13.7 | 25 | 30 | 12.8 | ... | 110 | 6 |
| CAU 150 | 150 | 15.5 | 25 | 30 | 12.8 | ... | 110 | 6 |
| CAU 185 | 185 | 17 | 32 | 30 | 12.8 | ... | 110 | 6 |
| CAU 240 | 240 | 19.5 | 32 | 30 | 12.8 | ... | 110 | 6 |
| CAU 300 | 300 | 23.3 | 40 | 36 | 16.5 | ... | 153 | 7 |
| CAU 400 | 400 | 26 | 40 | 36 | 16.5 | ... | 153 | 7 |
| CAU 500 | 500 | 29.1 | 47 | 60×60 | 4ф9 | 30 | 200 | 10 |
| CAU 630 | 630 | 32.5 | 47 | 60×60 | 4ф9 | 30 | 200 | 10 |
| CAU 630S | 630 | 33.5 | 47 | 60×60 | 4ф9 | 30 | 200 | 10 |
| CAU 630-36 | 630 | 36 | 47 | 60×60 | 4ф9 | 30 | 200 | 10 |
| CAU 800 | 800 | 37.5 | 60 | 80×80 | 4ф11 | 40 | 260 | 10 |
| CAU 1000 | 1000 | 42 | 60 | 80×80 | 4ф11 | 40 | 260 | 10 |
| CAU 1200 | 1200 | 45.5 | 65 | 80×80 | 4ф11 | 40 | 270 | 10 |
