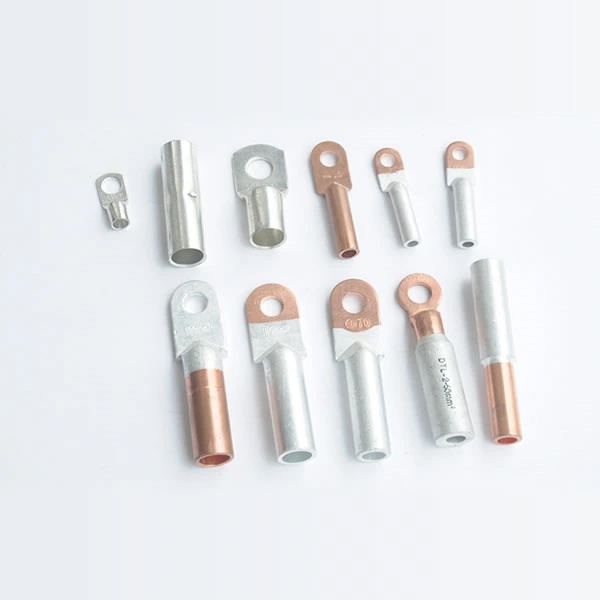

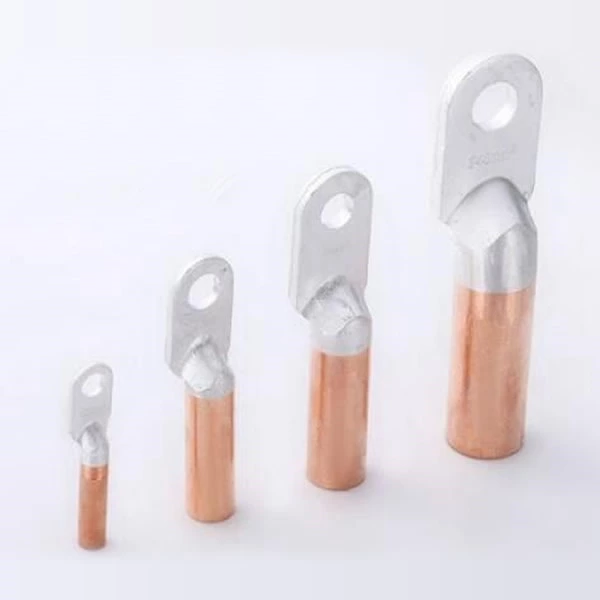

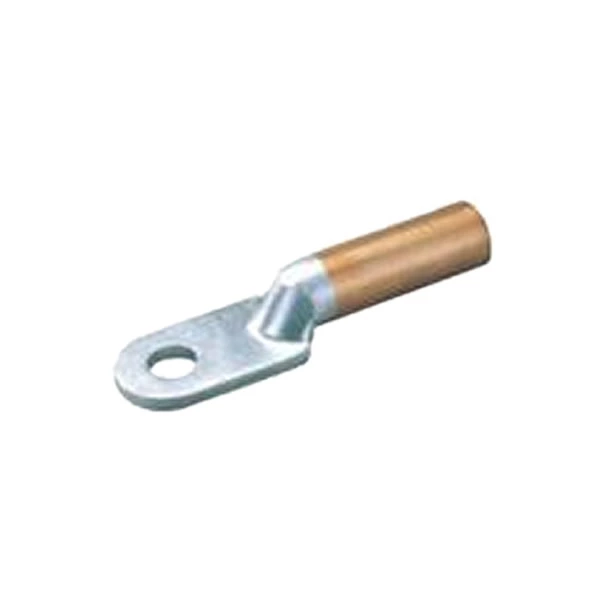

Aluminium-Copper Terminal (DLT series)
- Model:
- OT-10A
- Type:
- Single Hole Terminals
- Material:
- Aluminium,Copper
- Application:
- Conduct Electricity
- Character:
- Environmental Protection
- Species:
- Terminal
- Production Process:
- Welding
- Shape:
- Round
- Interface Type:
- SCSI
- Certification:
- VDE, Ce
Aluminium-Copper Terminal (DLT series)
Cable terminal lug is a kind of accessory for electrical connections, which can be crimped on cable/wire/ electrical equipment without thermal treatment. Our company, GUANGPU Electrical supplies a wide range of premium quality lugs to satisfy different demands. Our products are designed, manufactured and tested as per CE and GB standards to ensure good performance. These products are suitable for the connection of copper conductors (section 1.5mm2-800mm2) with electrical equipments.
- Material: Copper-Aluminum, purity≥99.9%
- Standard: CE,RoHS,VDE

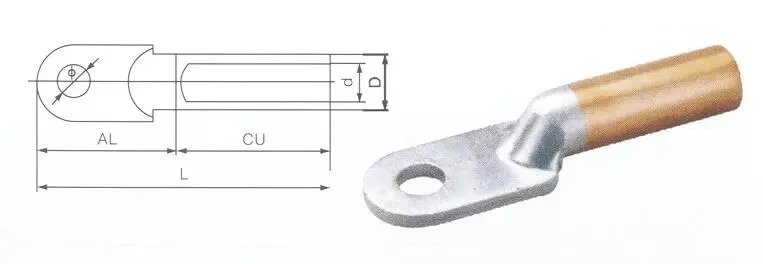

Drawing:
| Catalog No. | Cable Size (mm2) | Dimensions(mm) | |||
| d | D | Φ | L | ||
| DLT-16 | 16 | 5.5 | 8 | 13 | 55 |
| DLT-25 | 25 | 6.5 | 9.5 | 13 | 70 |
| DLT-35 | 35 | 8 | 12.5 | 13 | 70 |
| DLT-50 | 50 | 9.5 | 14 | 13 | 90 |
| DLT-70 | 70 | 11 | 16 | 13 | 90 |
| DLT-95 | 95 | 12.5 | 18 | 13 | 100 |
| DLT-120 | 120 | 14 | 20 | 13 | 105 |
| DLT-150 | 150 | 16 | 22 | 13 | 115 |
| DLT-185 | 185 | 17 | 24 | 17 | 115 |
| DLT-240 | 240 | 20 | 28 | 17 | 140 |
| DLT-300 | 300 | 22 | 31 | 17 | 140 |
