Cable Lug

150mm2 Tubular Copper Ring Cable Lug Terminals with High Conductive

Model
DT-150
Type
Insulated Cord End Terminals
Material
Copper Aluminium
Application
Conduct Electricity
Character
Insulation
Species
Terminal
Production Process
Cold Pressing
Shape
Round
Interface Type
BNC
Certification
BS, VDE
Conductor Size
16mm2 to 300mm2
Contact Now

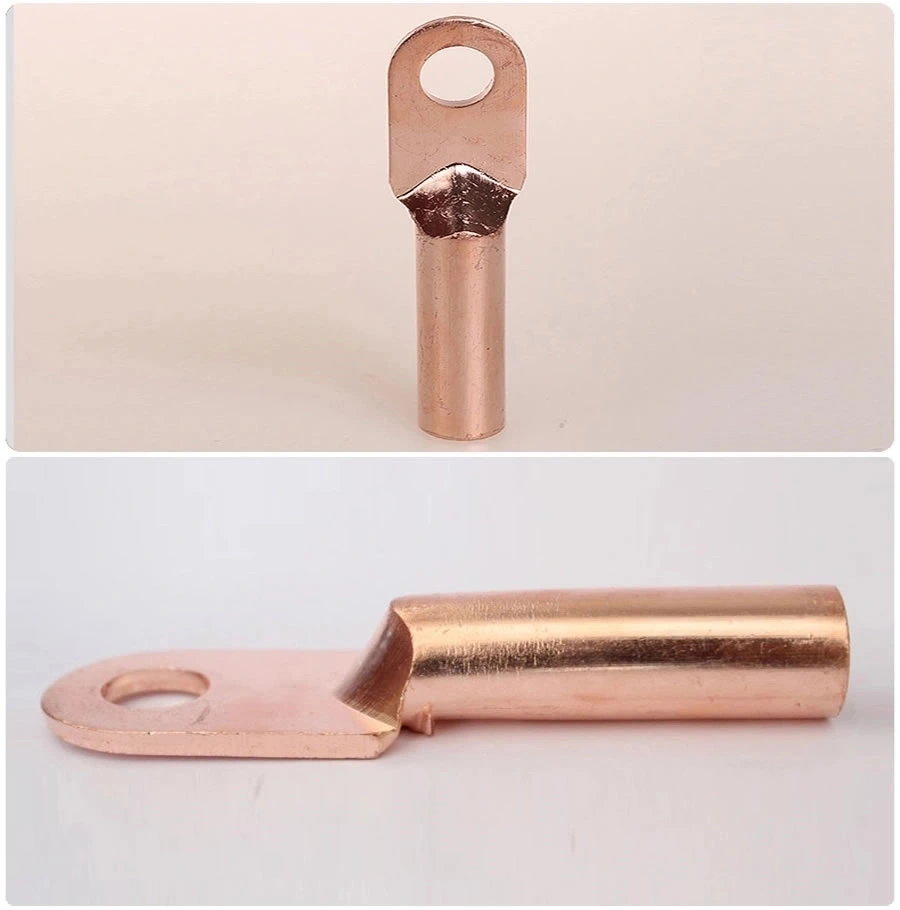

150mm2 Tubular Copper Ring Cable Lug Terminals with High Conductive
150mm2 Tubular Copper Ring Cable Lug Terminals with High Conductive 150mm2 Tubular Copper Ring Cable Lug Terminals with High Conductive

150mm2 Tubular copper ring cable lug terminals with high conductive

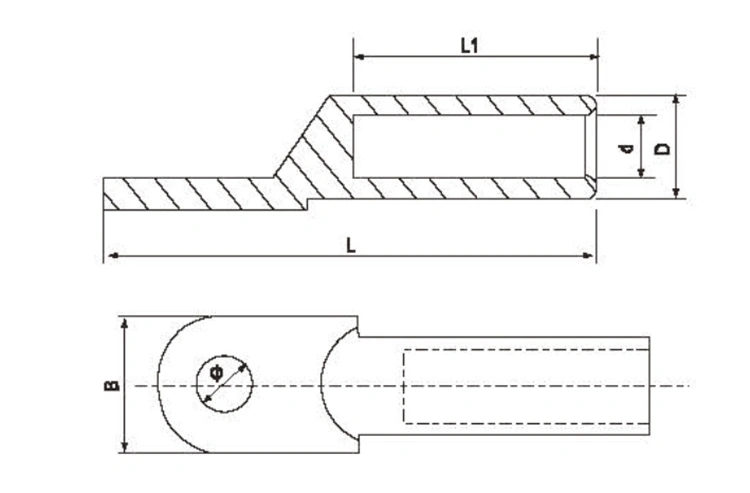

Item No Dimension(mm)
φ D d L L1 B
DT-10 8.5 9 5.3 62 28 16
DT-16 8.5 10 6.5 68 30 16
DT-25 8.5 11 7 70 33 18
DT-35 10.5 12 8.5 80 36 20.5
DT-50 10.5 14 9.5 85 38 23
DT-70 12.5 16 11.5 95 43 26
DT-95 12.5 18 13.5 104 46 28
DT-120 14.5 20 15 112 49 30
DT-150 14.5 22 16.5 120 51 34
DT-185 16.5 25 18.5 125 55 37
DT-240 16.5 27 21 136 60 40
DT-300 21 31 23.5 155 66 50
DT-400 21 34 26.5 170 75 50
DT-500 21 38 29 190 75 60
DT-630 21 45 35 220 85 80
DT-800 21 50 38 260 85 100
