Busbar Terminal Block

U Pin Plug-in Type Copper 1p 2p 3p Distribution Busbar MCB Terminal Block Bus Bar

Fork Type
Red Copper (T2 99.6% )
Conduct Electricity
Environmental Protection
Production Process:
Interface Type:
RoHS, ISO: 9001, SGS, Ce, TUV
Rated Current:
32A, 40A, 50A, 63A, 80A, 100A, 125A
Rated Voltage:
Appliable Ambient Temperature:
Contact Now

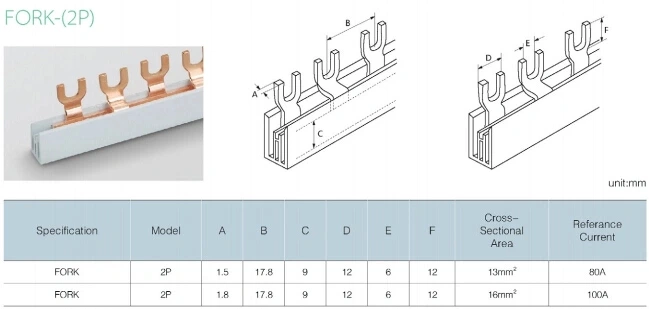

U Pin Plug-in Type Copper 1P 2P 3P Distribution Busbar MCB Terminal Block Bus Bar

Product Description of flexible copper busbar:

Price of flexible copper busbar fork type 2P 80A is used for kinds of circuit breaker, fork type copper busbar ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.

Technical features of flexible copper busbar:

  1. Material is of fire-resistant PVC and redl copper
  2. Current rating is up to 125A
  3. Rated voltage is up to 415V
  4. Applicable ambient temperature -25~+50
  5. Standard length 1m, other length tol be made upon request.
  6. Good conductivity, low contact resistance, safe and reliable.

How to choose the busbar:

Packing information of flexible copper busbar:

FORK type Dimension PCS/CTN Packing G.W kgs N.W kgs Material
FORK-1P-32A 1.0*5mm 200 101*22*12 26 25 Copper
FORK-1P-40A 1.2*5mm 100 101*12*9 14 13 Copper
FORK-1P-63A 1.5*7mm 100 101*12*9 16 15 Copper
FORK-1P-80A 1.5*9mm 100 101*14*10 21 20 Copper
FORK-2P-32A 1.0*5mm 50 101*14*8 15 14 Copper
FORK-2P-40A 1.2*7mm 50 101*14*10 18 17 Copper
FORK-2P-63A 1.4*7mm 50 101*14*10 21 20 Copper
FORK-2P-80A 1.5*7mm 50 101*14*10 23 22 Copper
FORK-2P-100A 1.5*9mm 50 101*14*10 23 22 Copper
FORK-3P-40A 1.0*7mm 50 101*22*10 20 19 Copper
FORK-3P-50A 1.2*7mm 50 101*22*10 22 21 Copper
FORK-3P-60A 1.4*7mm 50 101*22*10 24 23 Copper
FORK-3P-63A 1.5*7mm 50 101*22*10 27 26 Copper
FORK-3P-80A 1.5*9mm 50 101*22*10 30 29 Copper
