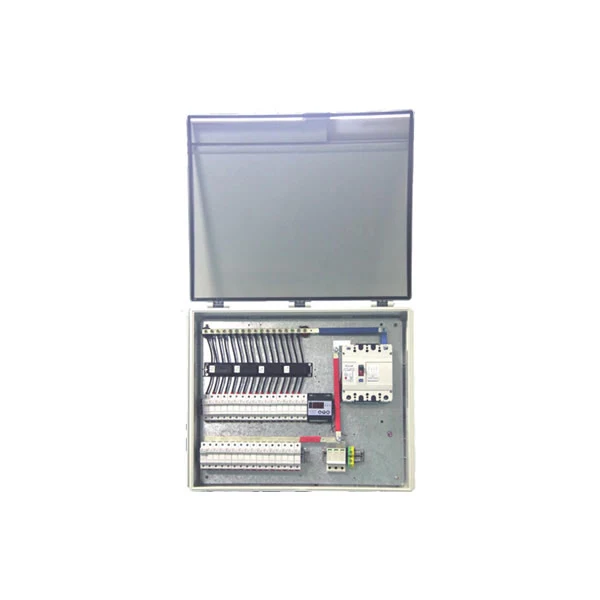

DC Combiner Box

DC Combiner Box

  • Meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;
  • Access 16-way PV array, each with 15A, 1000Vdc fuse (replaceable other grades);
  • Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;
  • Positive, negative string into the fuse;
  • Use quadruple PV dedicated circuit breaker with positive and negative in series.

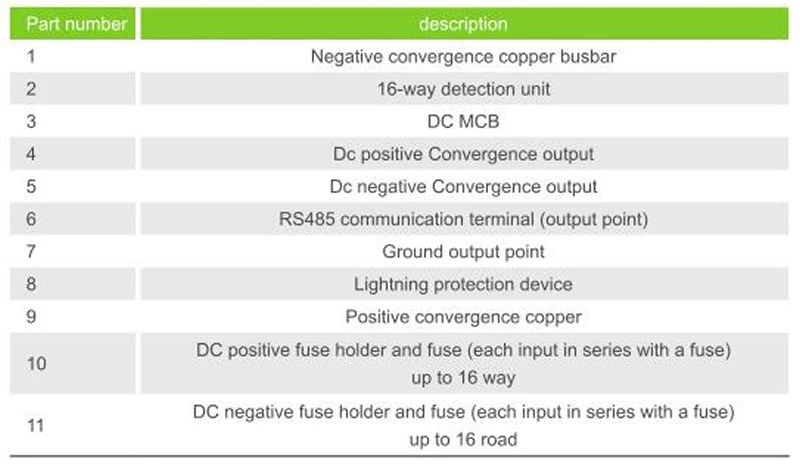

DC Combiner Box description

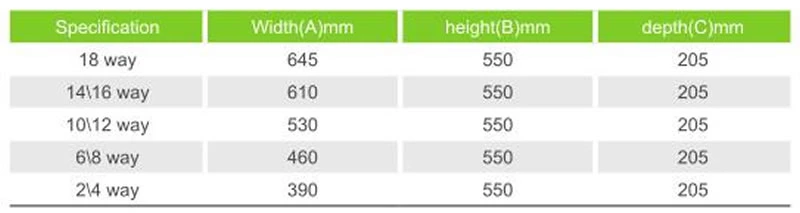

Size

DC Combiner Box Size

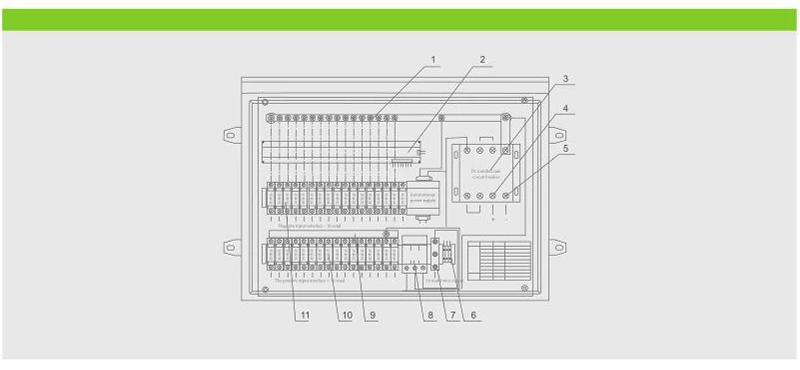

Basic Structure

DC Combiner Box  Basic Structure

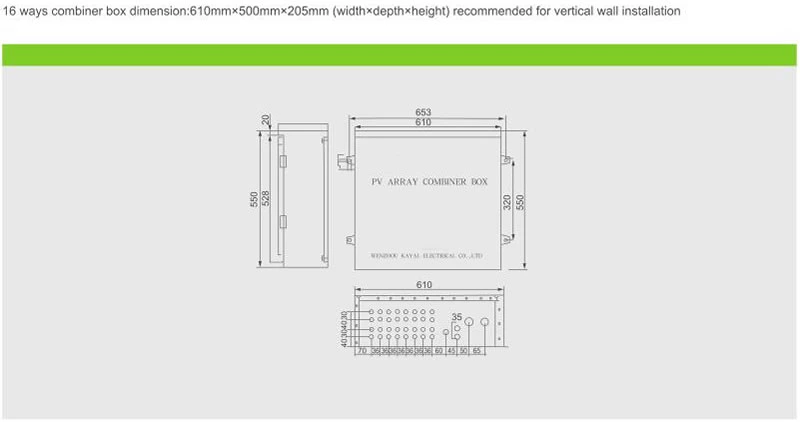

Installation Dimension

DC Combiner Box Installation Dimension
